Amain AMDV-7000 trolley full digital ultrasound diagnostic equipment with 2022 Hot selling Price and service

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:

China

Brand Name:

AMAIN

Model Number:

AMDV-7000

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Metal, Plastic

Shelf Life:

2 years

Quality Certification:

Instrument classification:

Class II

Safety standard:

GB 9706.1

Color:

White and Grey

Display:

15 Inch LED Screen

Image storage:

4920 images

Body mark:

97 kinds

Product Description

AMAIN AMDV-7000 trolley full digital ultrasound diagnostic equipment with 2022 Hot selling Price and service

A stable assistant for human health

The AMDV-7000 meets the challenges of today's ultrasound market by providing a complete imaging solution at an economical price. Its fully digital technology and high-performance sensors enable more accurate diagnosis of lesions. A variety of simple and clear functions make man-machine dialogue more convenient and fast. Meet everyday diagnostic needs at an affordable price without compromising image quality

Specification

Scanning mode	convex / linear
Probes	convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Display	15 inch high resolution LED
Display mode	B, B+B, 4B, B+M, M.
Detecting depth	244mm
Blind Zone	≤3 mm
Dynamic scope	0~100dB, visible & adjustable
Magnification	×0.8, ×0.85, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.
Note	ID, gender, age, hospital, doctor, comment, date, time.
Gray scale	256
Pseudo color	7
Body marks	30
Probe interface	2
Cine loop	256 frames
Gain control	The total gain, 8-segment TGC
Puncture guide	The puncture guide line can be displayed under B mode.
Image review	Images can be reviewed successively or checked one by one.
Image storage	40
Measurement	distance, perimeter, area, volume, heart rate, gestational week(BPD,CRL,GS,FL,AC,HC,EDD,AFI)
Image conversion	up/ down, left / right, black / white
Video output	SVGA (SVGA color monitor), PAL-D
Main power supply	AC220V±22V, 50/60Hz

Application

Application directions

1.Visualization tools: invasive intervention guide, surgical and therapy guidance. 2.Emergency inspection: ER, ICU, Wild First Aid, battlefieldrescue. 3. Preliminary examination: Ward Inspection, primary clinicexamination medical examination, health screening,home care, familyplanning, etc. 4. Remote diagnosis, consultation, training: works on smart phone or tablet, easy telecommunications.

Applicable ClinicAnaesthesia, pain, ICU, urology, nephrology, cardiology, rehabilitation, orthopedics, gynaecology, reproductive, obstetrics,neonatology, pneumology, gastroenterology, hepatological surgery, general surgery, vascular surgery, thyroid surgery, skullsurgery, neurology, transplantation, ophthalmology, dermatology, emergency, nursing, inpatient, physical examination, and ERambulance, primary care, family planning centers, family medicine, home care, nursing home, prisons, plastic surgery, small needleknife/acupuncture treatment clinic, sports medicine, battle field ambulance, disaster ambulance, etc.

Product Features

main features

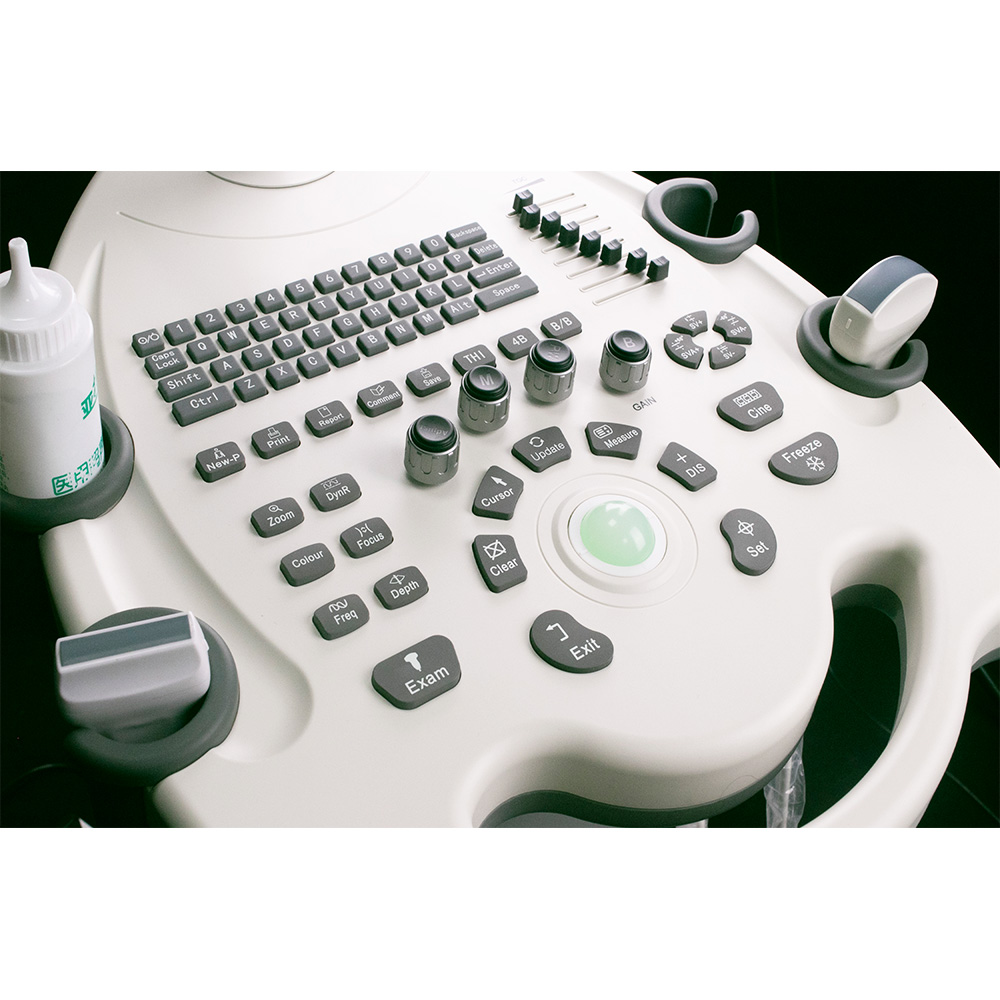

1. backlit silican gel keyboard, easy for dark room operation2. Stable performance3. 15" LCD screen4. trolley model with wheel, easy to move5. ISO13485,CE6. high resolution image quality7. professional measurement software packages: OBSTETRIC, GYNECOLOGICAL, UROLOGY, SMALL ORGAN

Multiple features allow doctors to respond to multiple needs

1)Support OB Report

2)Support Various pseudo-color

3)Display puncture guideline,angle and position adjustable

Rich interface allow for more functionally

1)3 probe connectors

2)USB interface for real-time image storage

Standard configuration:

USB Port

15 inch LCD screen

3.5MHz Multi-frequency convex probe(2.5MHz-4.5MHz)

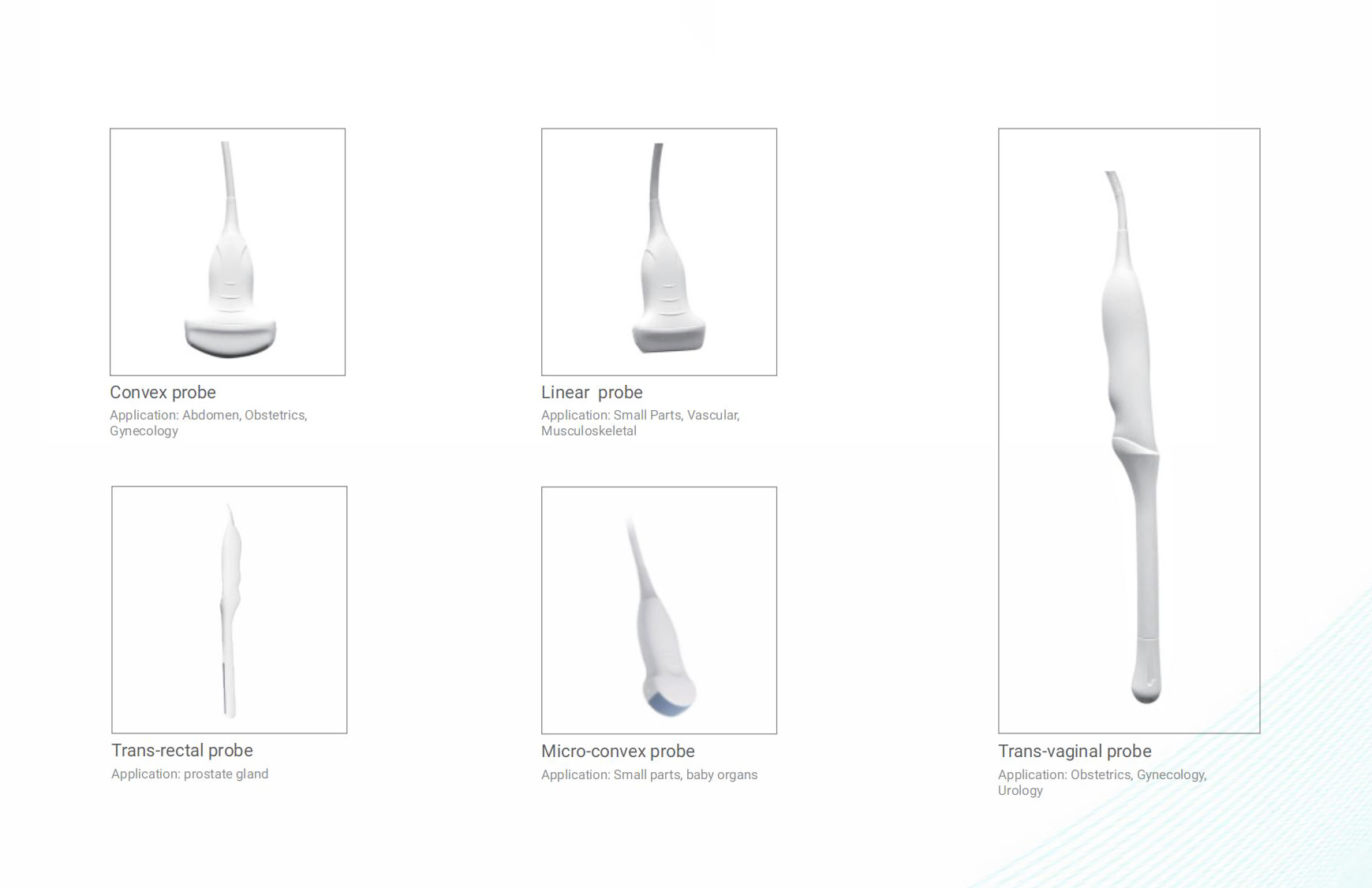

Options:

Trans-vaginal probe

Frequency: 5.0MHz,5.5MHz,6.5MHz,7.0MHz,7.5MHz Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】

linear probe

Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】

Micro-convex probe Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】

Convex probe

Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】

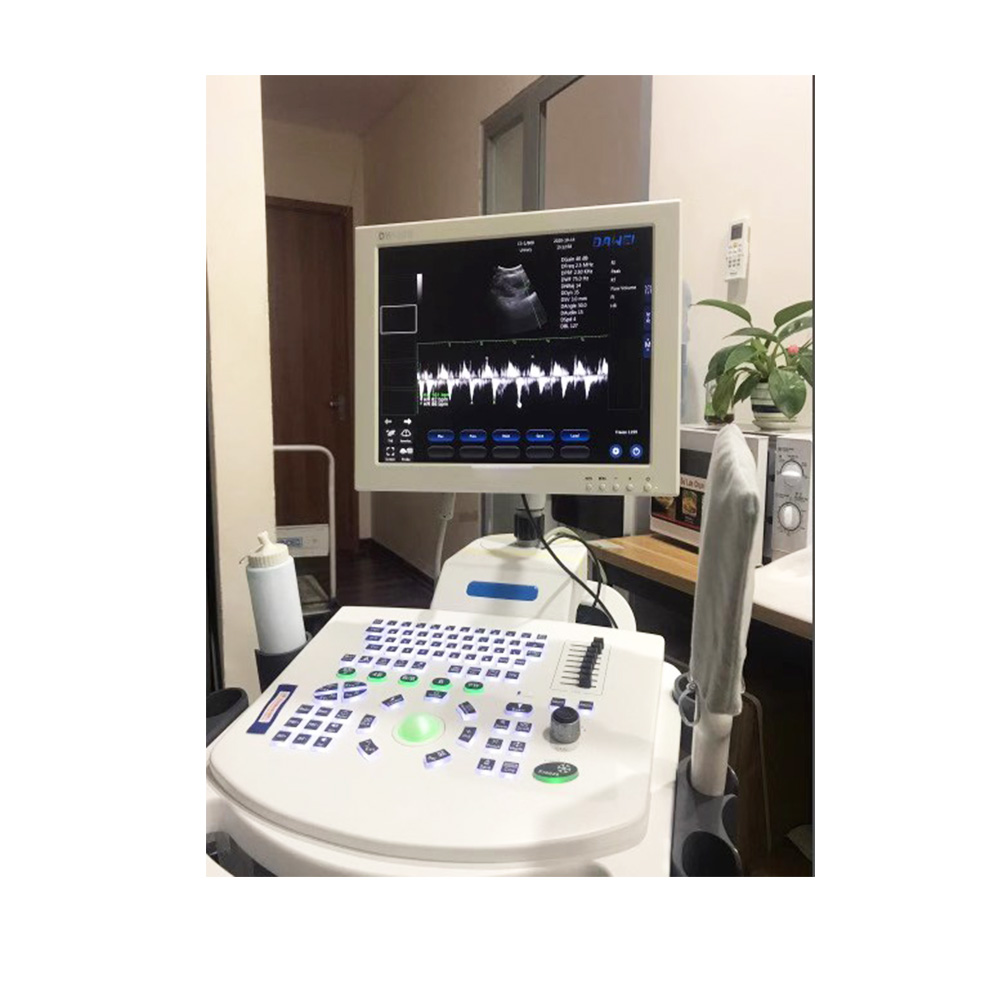

Clinic Images

Packing & Delivery

Amain AMDV-7000 trolley full digital ultrasound diagnostic equipment with 2022 Hot selling Price and service

Packaging Details:full digital ultra sound scan machine packed with carton

Port: Shanghai

Company Profile

AMAIN is a professional provider of medical equipment and solutions in China, we are dedicated to providing one-stop solution of medical equipment with more than 12 years. AMAIN combines the manufacture, research & development and distribution of medical equipment into one entity and includes three factories. Our headquarters locates in Chengdu city, Sichuan province. Production base locates in Sichuan, Jiangsu and Shandong province.AMAIN has established an effective manufacture system and management system. Now we have three modern manufacturing facilities covering more than 50,000 square meters. Our factories are in accordance with ISO 9001 and ISO13485 quality system requirements. In China, we have distributed our medical equipment to over 500 hospitals, clinics and healthcare facilities. Outside China, we have exported our medical equipment to more than 100 countries in Europe, America, Africa, Oceania and Asia.
