Amain AMDV-P3 Full Digital portable Color Doppler Ultrasound medicine equipment with High-end Cardiac ultrasound Parameters

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

Amain

Model Number:

AMDV- P3

Power Source:

Electric

Warranty:

2 years, 2 years, 24 Months

After-sale Service:

Online technical support

Material:

Metal, Plastic

Shelf Life:

2 years

Quality Certification:

Instrument classification:

Class II

Safety standard:

GB15979-2002

Product name:

Portable type all digital color Doppler ultrasonic mainframe

Display:

15 inch full viewing angle medical HD display

Battery backup:

Built-in Lithium Battery

Display mode:

B,2B,4B, M, B|C|D,B|C|M,B|C,PW,CFM,CPA

Battery:

Built-in Lithium Battery

Weight:

6.5kg

Probe Type:

Convex + Linear Probe

Product Description

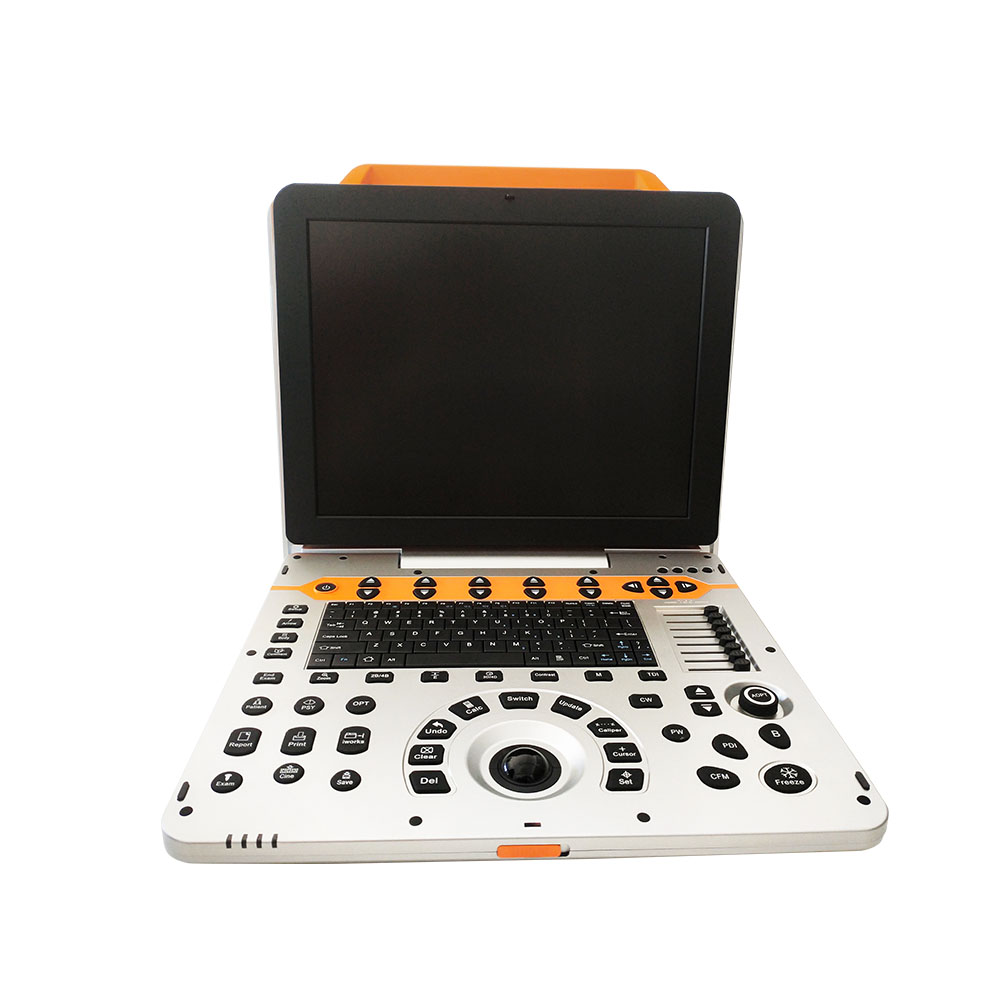

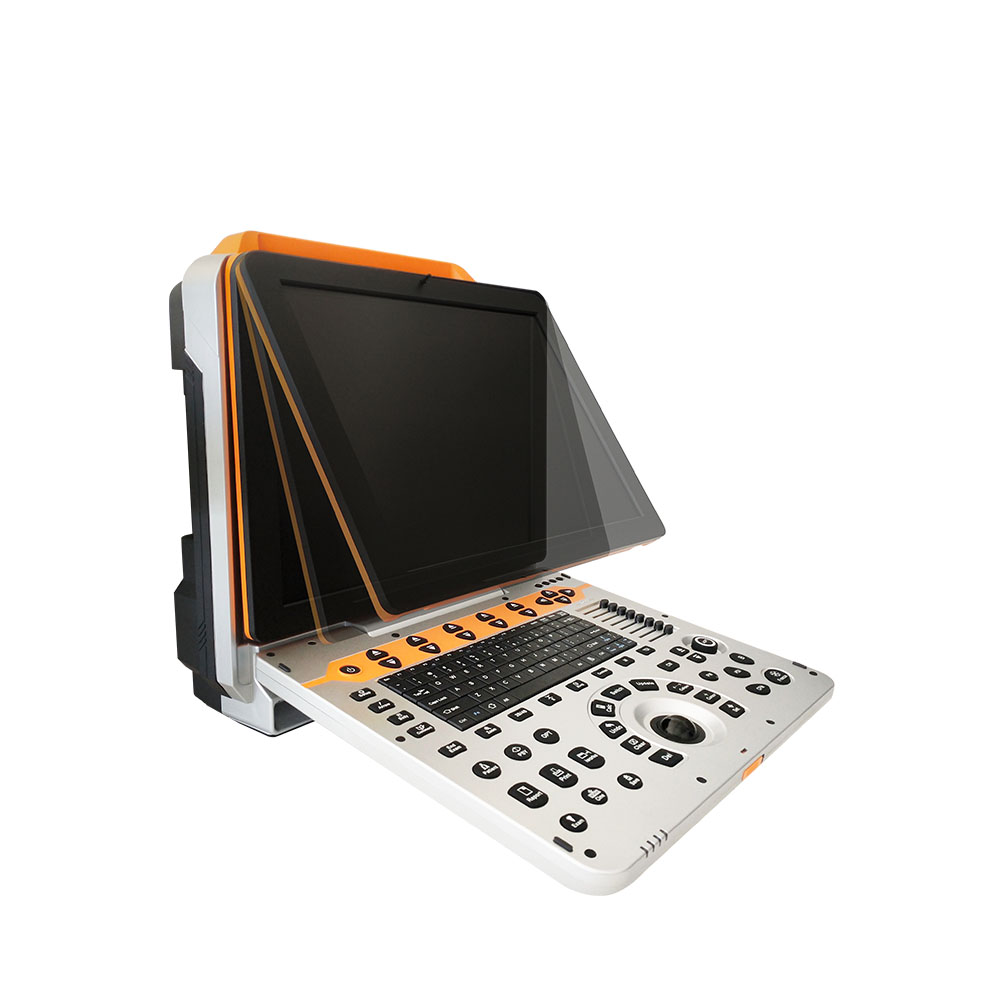

Amain AMDV-P3 Full Digital portable Color Doppler

Ultrasound medicine equipment with High-end Cardiac ultrasound Parameters

Full Digital Color Doppler Ultrasound System

DW-P3 adopts ST-U advanced ultrasonic system platform, and the image is super clear in full time. Overall hardware configuration image power upgrade again, excellent mobile performance, to deal with a variety of complex environment, its birth can enable more medical institutions have cost-effective ultrasound equipment

Specification

Place of Origin	China
Brand Name	AMAIN
Model Number	AMDV-P3
Power Source	Electric
Warranty	2 years
After-sale Service	Online technical support
Material	Metal, Plastic
Shelf Life	2 years
Quality Certification	ce
Instrument classification	Class II
Safety standard	GB15979-2002
Display	15 inch full viewing angle medical HD display
Battery	Built-in Lithium Battery
Imaging mode	Tissue Doppler Imaging
Connectors	Double activated probe connectors
System	Full digital color doppler ultrasound system
Clinical Versatility	7 probes with abundant measurement packages
Workflow	One-Key-Save, user-defined keys

Product Application

Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal

Product Features

1Tissue Doppler Imaging 2.High resolution medical 15 inch display 3.TGC：8 segment adjustable 4.Real skin rendering 5.Line density：low、middle、high，3 level 6.Frame correlation：0-4,4 level 7.Noise reduction：0-5，5 level

8.Image style：Soft-Comparison，2 level

9.The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted

10.Languag: Chinese/English/Russian/Spanish/French

Probe:

Convex probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, ( Depth: 20-317MM )

Linear probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, (Depth:20-110MM )

Transvaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, （Depth:30-111MM）

Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, ( Depth:30-371MM )

Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, ( Depth:30-237MM )

Micro-convex probe（R11）: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (Depth:30-111MM)

Micro-convex probe（R20）: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, (Depth:30-23.7MM)

The above probes have harmonic frequencies Each probe has a selection of specialist and organ modes for quick access for diagnostic

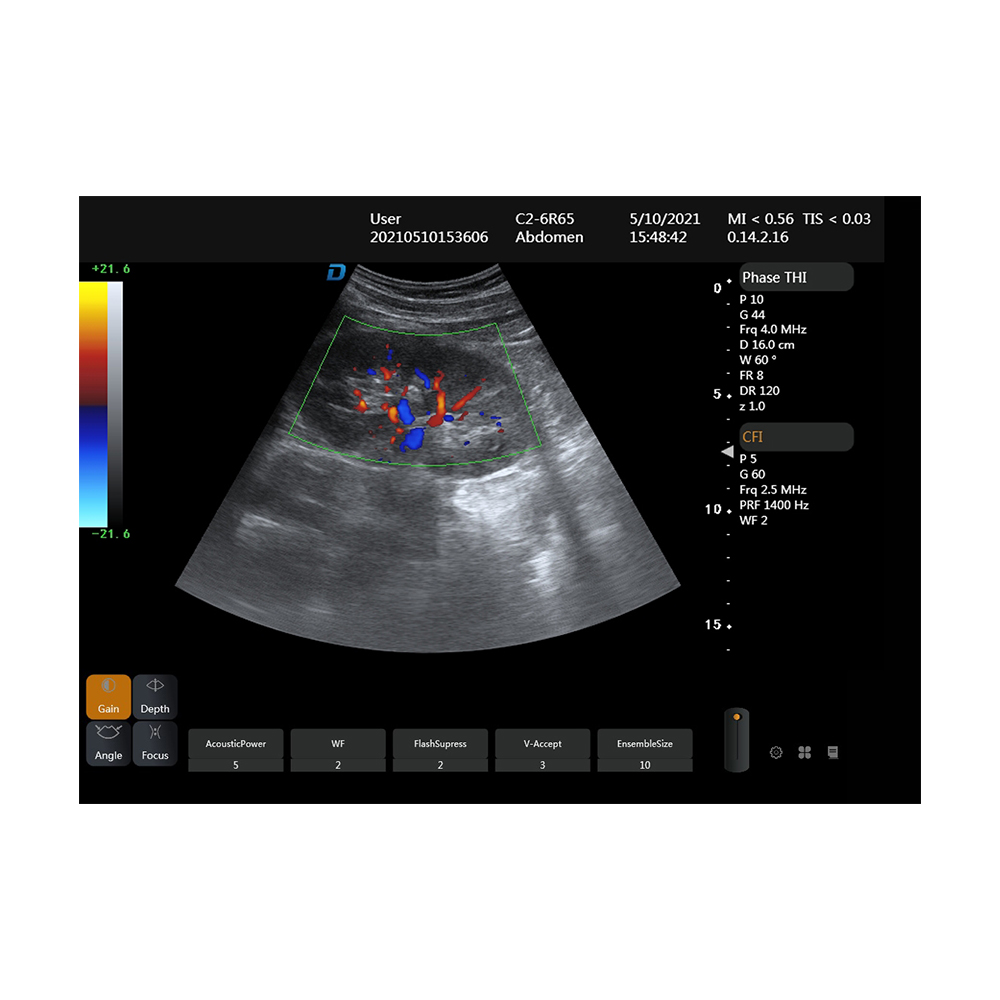

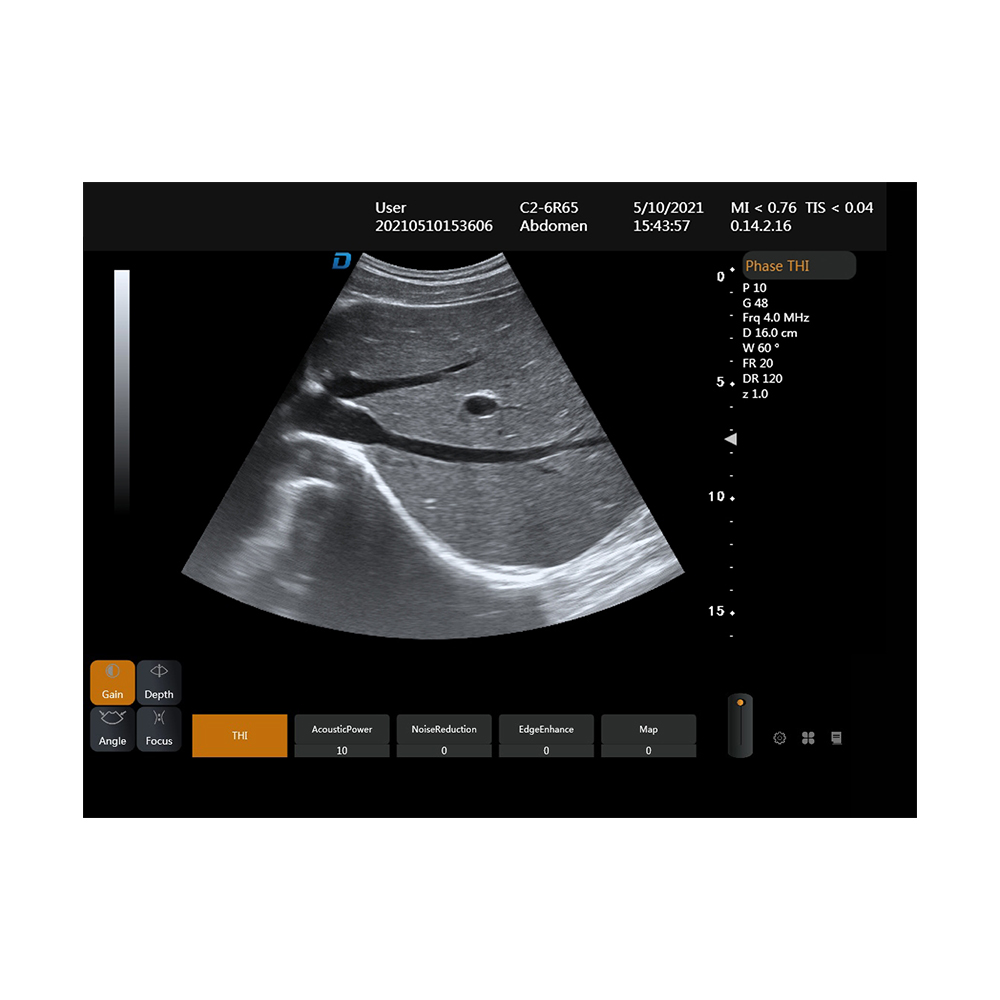

General Images

Packing & Delivery

Amain AMDV-P3 Full Digital portable Color DopplerUltrasound medicine equipment with High-end Cardiac ultrasound ParametersPackaging material: aluminum plastic box + cartonPacking size : 71*47*61cm, GW: 6.5kg
