Product Description

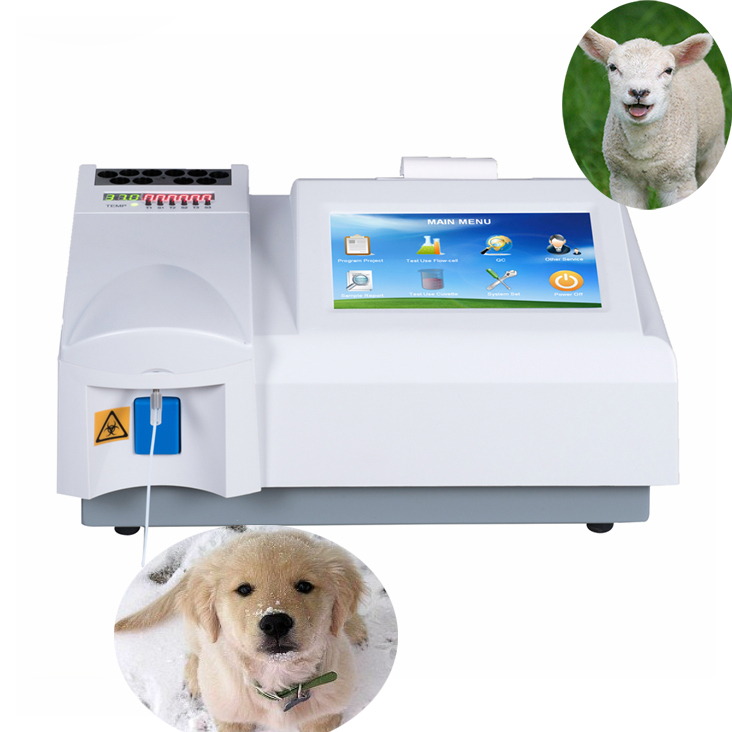

AMAIN OEM/ODM AMSX3002B1-vet Semi-automatic Veterinary Biochemistry Clinical Analytical Instruments
Image Gallery
Specification
|
Test mode
|
Kinetic, End point, Two point, Absorbance
|
||||
|
Wavelength
|
7 standard filters, 340, 405, 492, 510, 546,578, 630nm, 1 free position
|
||||
|
Wavelength precision
|
±2nm, width≤10nm
|
||||
|
Absorbance range
|
0~4.500Abs
|
||||
|
Incubators
|
10 Incubators, 37±0.3℃
|
||||
|
3 timers,precision
|
±0.1S
|
||||
|
Absorbance precision
|
outside 0.0001Abs, inside 0.00001Abs
|
||||
|
Carry over
|
<1%
|
||||
|
Repeatability CV
|
<1%
|
||||
|
Incubator
|
37℃, 30℃, 25℃, and others, Precision:±0.1℃
|
||||
|
Sample volume
|
0~3000uL(500uL recommend)
|
||||
|
Data Storage
|
10000
|
||||
|
Quality control curve
|
SD, CV%, L﹣J quality control curve for every test item
|
||||
|
Flow cell
|
32ul quartz glass, 10nm
|
||||
|
Lamp
|
Philips 6V 10W Halogen Lamp with long life
|
||||
|
Screen
|
7 inch color LCD
|
||||
|
CPU
|
ARM series high speed micro CPU
|
||||
|
Printer
|
Internal thermal sensitive printer
|
||||
|
Interface
|
RS-232
|
||||
|
Work Environment
|
Temperature 0℃~40℃, Humidity:80%
|
||||
|
Power supply
|
100~240VAC, 50-60Hz, 100VA
|
||||
|
Dimension
|
340(L)*270(W)*160(H)mm
|
||||
|
Weight
|
5kg
|
||||
Application
USUAL TEST LIST
Liver function:
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function :
BUN CRE UA URE CO2-CP γ-GT
Lipids:
T-CHO TG HDL-C LDL-C
Cardiac function:
CK CK-MB LDH
Immune proteins:
IGA IGG IGM C3
Others:
GLU HGB AMS
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function :
BUN CRE UA URE CO2-CP γ-GT
Lipids:
T-CHO TG HDL-C LDL-C
Cardiac function:
CK CK-MB LDH
Immune proteins:
IGA IGG IGM C3
Others:
GLU HGB AMS
Product Features
BASIC FEATURES
●5 inch Color LCD , Touch screen
●Flow cell and Cuvette test mode compatible
●Real time curve showing
●5 wavelength , 80 test item pre-programmed
●Memory for 10,000 sample results
●Light source hibernate function making lamp life longer
●RS232 interface, PC connecting
●5 inch Color LCD , Touch screen
●Flow cell and Cuvette test mode compatible
●Real time curve showing
●5 wavelength , 80 test item pre-programmed
●Memory for 10,000 sample results
●Light source hibernate function making lamp life longer
●RS232 interface, PC connecting
OPTIONALS
1. Semi-auto chemistry analyzer
2. Power line
3. 12V DC power adaptor
4. Ground cable line
5. Touch pen
6. Thermo sensitive paper
7. Spare pump tube
8. Waste bottle
9. Operation manual
10. Packing list
11. QC certificate
12. Lamp assembly
