| Place of Origin: | China | Brand Name: | Amain, AMAIN |
| Model Number: | Cosmos C20, Cosmos C20 | Power Source: | Electric |
| Warranty: | 1 Year | After-sale Service: | Online technical support, Online technical support |
| Material: | Metal, Plastic, TPU | Shelf Life: | 1 years |
| Quality Certification: | ISO13485 | Instrument classification: | Class II |
| Safety standard: | GB15979-2002 | Type: | Digital Trolley Ultrasound Scanner |
| Display modes: | B, B+B, B+M, M, 4B | Monitor: | 15 inches LCD screen |
| Scanning mode: | Convex/Linear/Trans-vaginal/Trans-rectal | Store: | 8-Segment TGC adjustment |
| Connector: | 2 probe connectors | Port: | USB 2.0, VGA, Video connector |
| Certification: | ce, ISO9001 |
Product Description

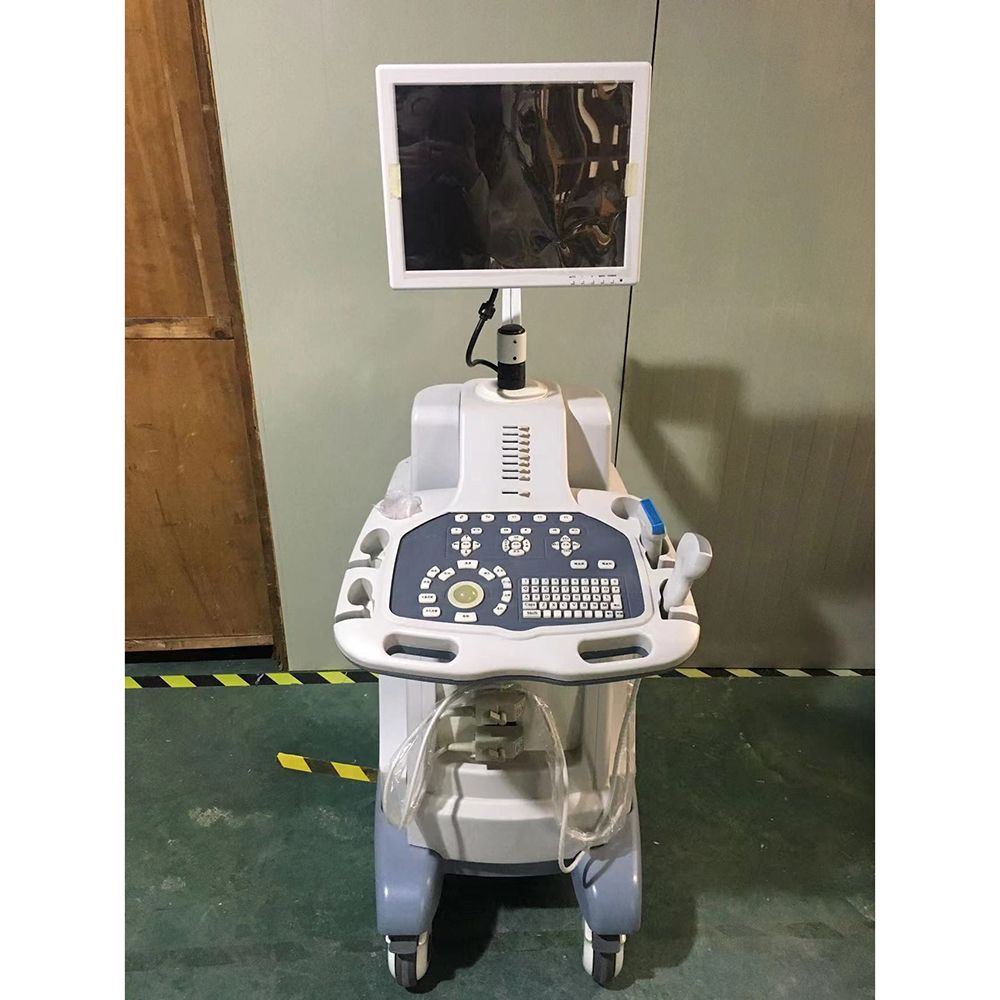

Amain OEM/ODM Lower and Discount Price Of Cosmos C20 Trolley Ultrasound Scanner for liver kidney bladder fetal diagnosis
Specification
|
Scanning depth
|
240mm
|
|
Gray scales
|
256
|
|
Body marks
|
33
|
|
Image conversion
|
up/down, left/right, black/white
|
|
Function of image magnification
|
1.image zoom (real-time status under B mode), up to 5 times (area); 2.local amplification function:which can be enlarged under the real-time and froze
|
|
Function of puncture guide
|
1.Max dynamic range>=100db;2.Detecting depth>=190mm, scanning depth>=240mm;3.The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;4.Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm)
<170mm);
5.Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm) |
|
Gamma
|
1.4 gray scale γ transform function
2.Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination
3.Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, videoimage printer and other equipment
4.Fixed characters and real-time clock and calendar display
5.Software reset function
|
|
Printer function
|
can connect laser printer and Video printer directly;
|
|
Comment
|
Date, Name, Sex, Age, Hospital, Annotation
|
|
Zooming
|
*1.0, *1.2, *1.5, *2.0
|
|
Port
|
USB 2.0, VGA, Video connector
|
|
Wide application
|
abdomen, OB/GYN, urology, cardiology, small parts etc
|
|
USB Function of image store
|
more than Sixteen thousand images
|
|
Power supply
|
AC 110V-240V, 50HZ/60HZ
|
|
Probe connector
|
2USB/VGA/ ports;Video connector;
|
|
Standard configuration
|
Main unit 1 set60R/3.5MHZ Multi-frequency Convex array probePower line 1pcGround line 1 pcFuse 4 pcUser’s manual in English 1pc
Packing list 1pcWarranty card 1pc
|
|
Options
|
L40/7.5MHZ multi-frequency Linear array probe20R/5.0MHZ multi-frequency Micro-Convex array probe13R/6.5MHZ multi-frequency Trans-vaginal array probe7.5R/7.5MHZ multi-frequency Trans-rectal probeMitsubishi Video printer P93C
|
Application
Amain OEM/ODM Lower and Discount Price Of Cosmos C20 Trolley Ultrasound Scanner for liver kidney bladder fetal diagnosis product is suitable for the diagnosis of the soft tissue of the human dynamic graphics.
such as :
1.The liver
2.Gallbladder
3.Kidney
4.Spleen
5.Pancreas
6.Uterus
7.Bladder
8.Fetal
9.Family planning to check pregnant, check ring, obstetrics and gynecology.
Features
Main Features:
1.Powerful measurement & calculation software packages2.8-Segment TGC adjustment3.15 inches LCD screen4.OB measurements: BPD, GS, CRL, FL, AC, HC, etc5.Permanent function of image store: 32 images6.Back-lit keyboard7.2 probe connectors8.Probe automatic identification
Measurement:
1.General menu: Distance, Area, Volume, Angle,Ellipse
2.Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight
3.Heart menu: Distance, Time, Slope, Rhythm
Packing & Delivery
Amain OEM/ODM Lower and Discount Price Of Cosmos C20 Trolley Ultrasound Scanner for liver kidney bladder fetal diagnosis which is same as sonos arc Ultrasound transvaginal examination Home Ultrasound Infant Ultrasound Diagnosis for diabetics and pregnant woman ,we also apply Mindray Sonoscape Chison ultrasound with Pw Cw color doppler imaging.Standard PackingPackaging Details:Carton Port:SHENZHENG China
