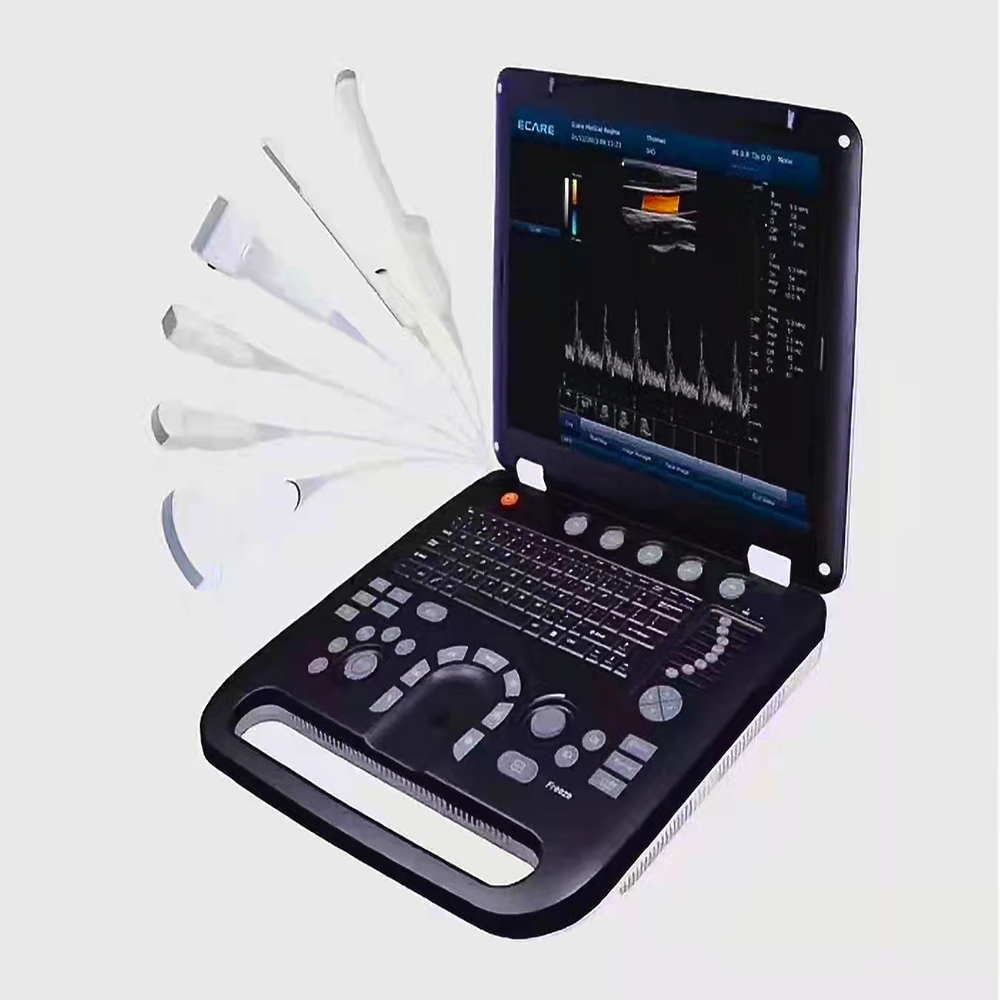

Amain OEM/ODM Manufacturers AM-50C 3D color ultrasound diagnosis machine for Cardiac and fetal fetus doppler

item

value

Model

Amain  EC-50C

Monitor

15 inch LED

Display mode

B, B+B, B+M, M, 4B, 9B

Image gray scale

256 level

Cine loop

Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M

Image storage

＞50,000 frames

Scan angle

60-160 degrees, depending on probe

Scan depth

20mm～240mm

Dynamic range

≥100dB, 4-level adjustable

Image flip

Up/down, left/right, black/ white, 90/180/270°

Zoom

Continuously, real-time dynamic PIP

Focus position

Adjustable

Focal space

Adjustable

Measurement

Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc.

Software packages

General, OB, GYN, cardiology, urinary, small organ

Notation

Date, time, name, sex, age, doctor, hospital name, full screen notation

Body mark

43 types

Peripheral port

Video, S-video, USB2.0, DICOM3.0, VGA

Battery volume

8,000mAh

Power consumption (MAX)

75VA

Dimension

49*49*10.5 CM

Net Weight

8.5kgs

Scanning Method

 electronic linear/convex/micro-convex

Scanning Depth

2-24cm

 Imaging Mode

B, B|B, 4B, B|M, M, Color Doppler (CFM), Power Doppler (PDI), Directional Power Doppler (DPDI),Pulsed Wave Doppler (PWD), B+PWD (Duplex), B+CFM/PDI/DPDI+PWD (Triplex),High Pulse Repetition Frequency (HPRF), Tissue Harmonic Imaging (THI)

 Color Doppler:

l PRF variable: 0.5-9 kHzl Wall filter settings: 3 steps (5%, %10%, 15% PRF)l Angle steering for linear transducers: ±10°l Real-time spatial filter: 4 valuesl CFM palette>10 mapsl PDI palette>10 mapsl B/Color priority controll Color threshold controll CFM baseline controll Doppler frequency selectionl color frame averagingl Transparent Color Mapping (TCM)

Pulsed Wave Doppler:

l PRF variable: 1-10 kHzl Wall filter settings: 16 steps (2.5%-20% PRF)l Angle steering for linear transducers: ±10°l Real-time trace line with automatic calculation of spectrum parametersl Stereo sound: volume controll PWD palette>10 mapsl Doppler frequency selection

Image Processing:

l High Line Density scan mode for better resolutionl Dynamic range>120 dBl M-mode sweep speed controll Acoustic power controll Variable frame averagingl Advanced gamma controll Scan direction, rotation, up-down controlsl Echo enhancement controll Noise rejection functionl Speckle reductionScan depth

 Image and video saving format

AVI, JPG, BMP, PNG, TIF, DCM (DICOM)

General Measurement and calculation:

Distance, Length, Area, Circumference, Volume, Angle, Stenosis Ratio, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.

Measurements and Calculations Software Packages

Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.

 Peripheral port

VGA, TV, USB, DICOM

Support Printer

 Laser, video
