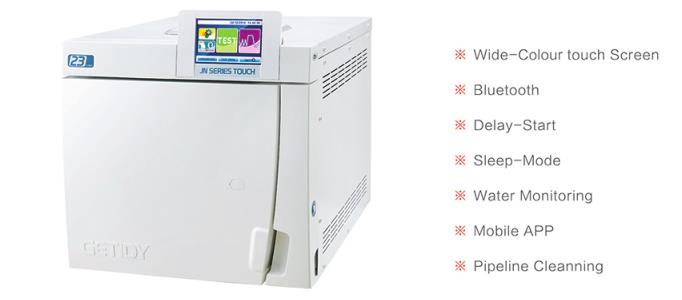

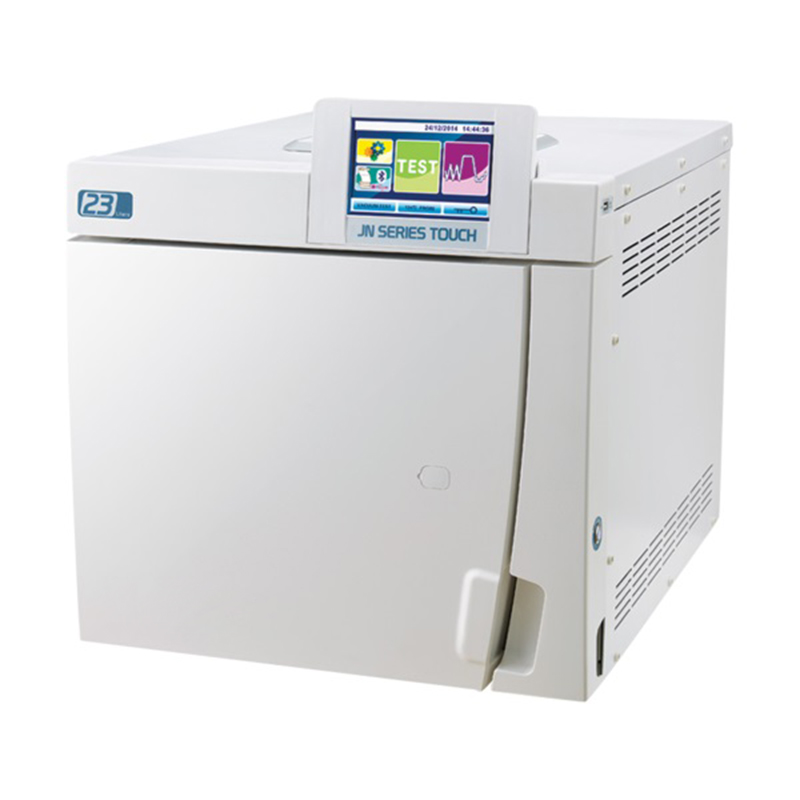

Amain Wide-color Touch Screen PC Automatic Control Dental Equipment Steam Sterilizer
Specification
|
Item
|
Value
|
|
Voltage
|
220V/50Hz
|
|
Power
|
1800VA
|
|
Vol
|
23L
|
|
Chamber
|
Ф250*450 mm
|
|
Packing Size
|
740*595*560
|
|
Space
|
70 cm
|
|
G.W
|
65kg
|
|
N.W
|
60kg
|
* European Class B and S, in accordance with EN 13060 standard, with three times pre-vacuum and one times pre-vacuum, pulse drying function. Vacuum index up to -0.850bar, the device residual humidity <0.2%.Beingable to sterilize instruments that are packed, unpacked,solid,Hollow A, Hollow B and Hollow B pipeline . High efficiency, allwave sterilizing. * HD Wide-color touch screen, Menu interface, PC Automatic control. * With tests of“BOWIE & DICK”、“HELIX” 、“VACUUM” 、“PARTS PERFORMANCE”. * User-defined Function. Adjust sterilization temperature,vacuum times, sterilization time, drying time. * New rapid steam generator of stainless steel pipe, completely solve the Silica gel pipeline and seal because it is aging. Set“WASH” program, cleaning pipeline to avoid clogging. * The autoclave stores 128 sterilization records. By USB connector download to U disk. * Save electricity Function:Delay-Start. Sleep-Mode. turn off after sterilization. Power recovery restart. * Water and steam separation device. In order to improve the life of the vacuum pump, improve the pulse vacuum value, so that the device is more reliable sterilization, enhance the dryness of the device. * Automatic distilled water function. Upward-Open water tank. * Double temperature sensor inside chamber, independent implementation system and evaluation system. * ULKA brand mini water pump. Pressure Switch & Door Motor made in Germany.SU 304 stripe stainless steel.
Upgrade Function:
* Bluetooth label thermal printer: after the autoclave is connected to the printer by Bluetooth signal,order of autoclave send to printer.After the label is printed,it is posted at package. The contents of the label is date, time,S.N,program cycle. Convenience the process is traced. * Mobile APP: monitor the various operating conditions of the autoclave. You can operate the sterilizer by phone. After sterilization is over, send a message to your phone.etc. * Water Monitoring Device: when you supply the unqualified distilled water, the autoclave runs will is stopped.
Product Application
* It’s used in hospitals, clinics
Product Features

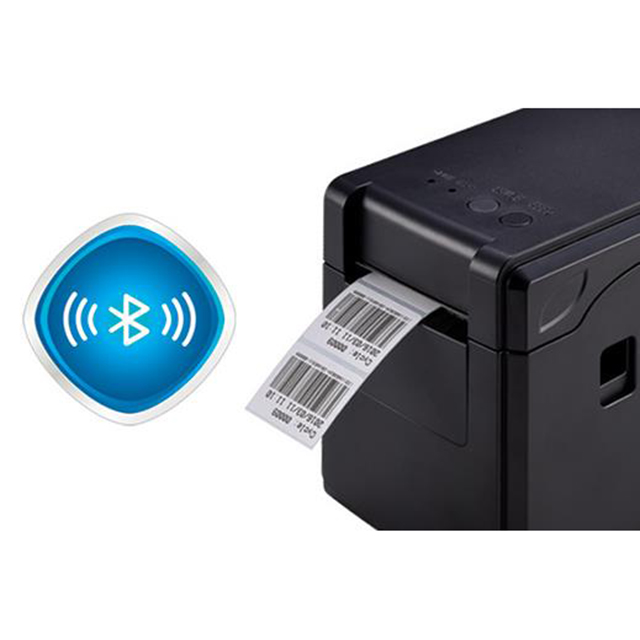

Bluetooth Label Printer

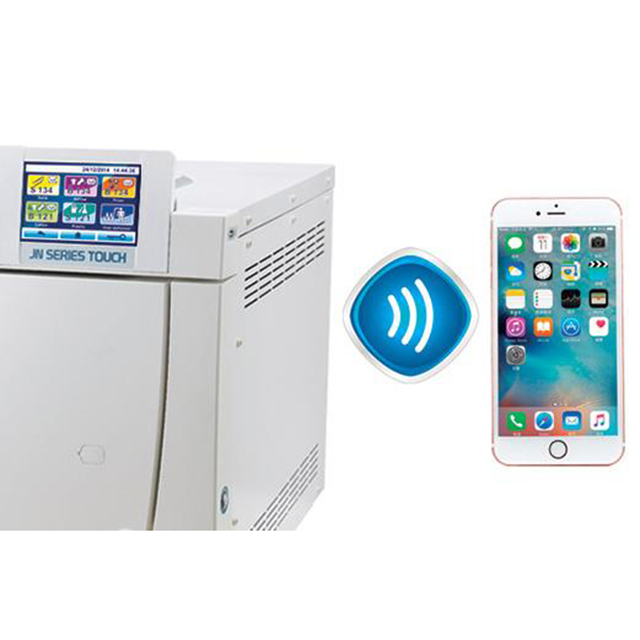

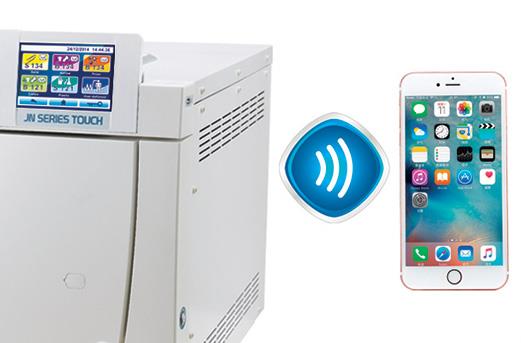

Mobile Phone Control and Monitor Sterilizer
Connect the sterilizer with bluetooth signal through mobile phone, it will monitor and operate the sterilizer successfully
connected to you.
connected to you.

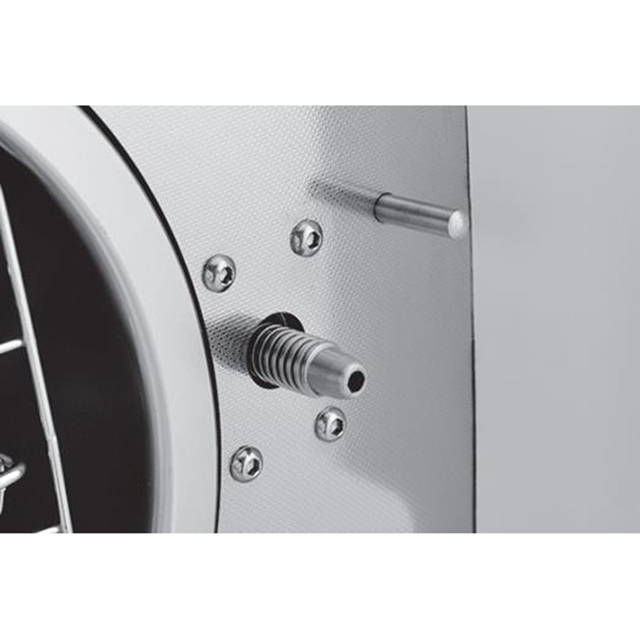

Advanced Door Structure Design
The use of the world’s more advanced and scientific screw lock automatic door mechanism, more safe and reliable, low failure rate. Perfect trigger mechanism design, the motor rotation control is perfect.

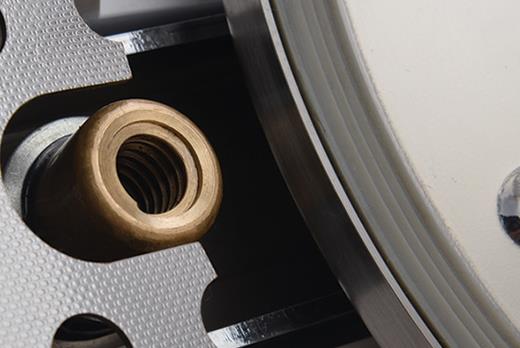

Refined Copper Lock Nut
In order to contact the screw head to the copper nut on the door mechanism easily when closing the door, we have designed the universal angle nut to achieve the sealing effect after closing the sterilizer door body.

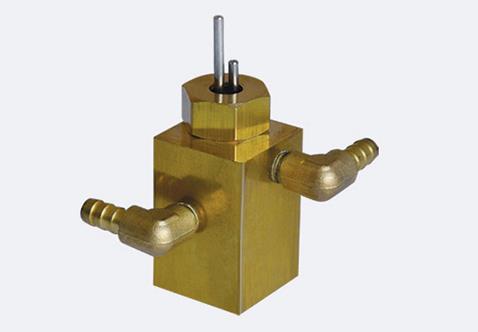

Water quality monitoring sensor device
Effective monitoring of distilled water quality, the unqualified water quality alarm prompt, the construction of steam generator, solenoid valve blockage failure.

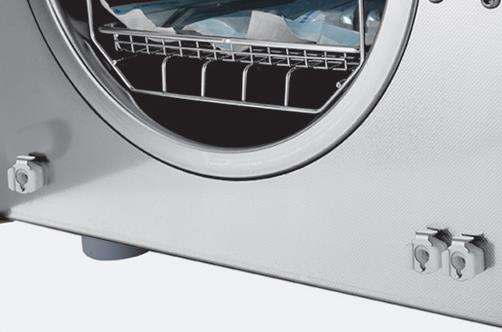

Original inlet drain switch
Easy to operate and reliable. On the left is the automatic water feeder.

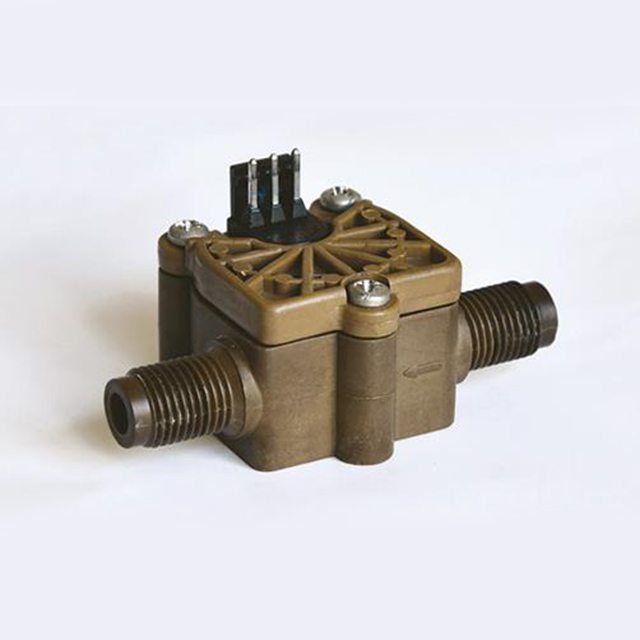

Original inlet flow control switch
In the process of automatic water filling, when there is no water in the water source, in order to prevent the mini-pump from working all the time to burn out, the control system automatically shuts down the pump.
Well-Know Door Motor Pressure Control Switch
The automatic electronic safety door lock motor originally installed in ASEEFRID from Germany is selected, which has large torque,
long life, and is more safe and convenient.
long life, and is more safe and convenient.
