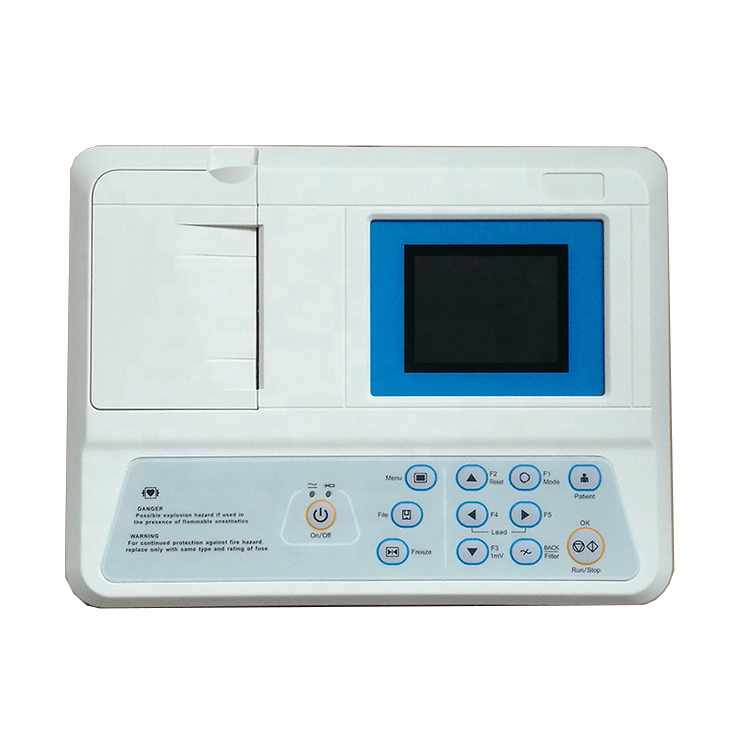

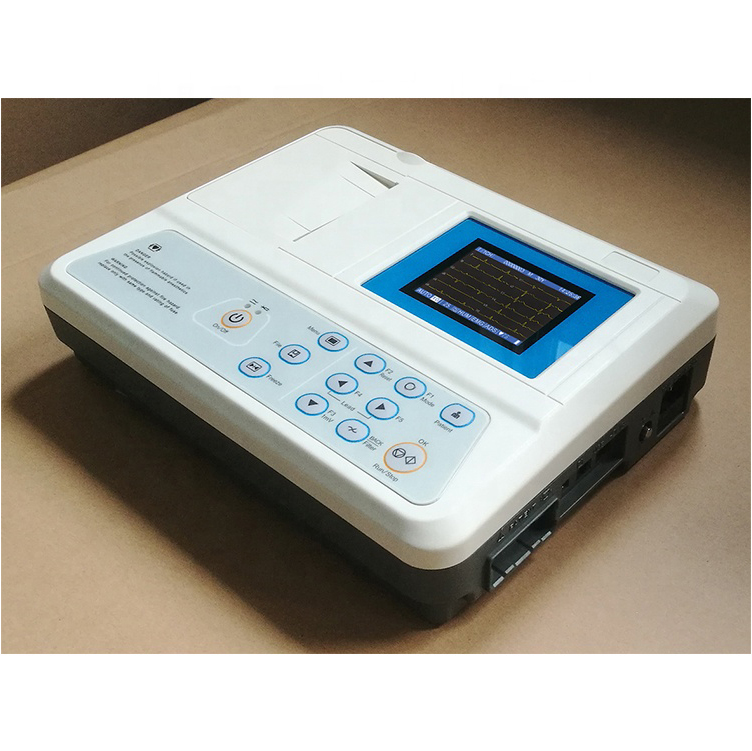

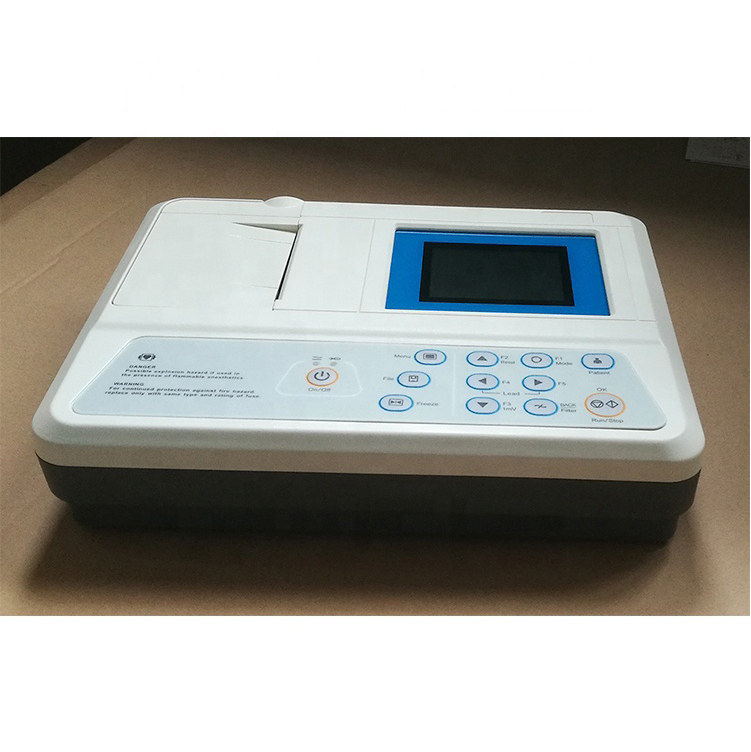

Product Description
01. Compact in size, easy and direct operation, portable
02. Accurate pace pulse identification and automatic analysis function.
03. Four working modes: Manual / Auto / Physical Examination / Storage
04. 80mm, 3 channel format recording
05. Freeze function: can replay 12 seconds cardiograph front and back
06. Fast ECG test under the [Physical Examination], saving power and paper
07. Store and replay cardiograph without printing parameters and diagnosis under the Storage Mode.
08. 3.5” 320×240 graphic 3.5 inch color screen
19. Adapt to 110-230V, 50/60Hz AC power supply. Built in rechargeable Li-ion battery.
10.12 lead waveforms view with 250 patient information storage (Extendable)
11.Built-in USB, RS232 interface, EXGNET software optional
12.USB interface for net transmission, USB flash disk and USB printer.
02. Accurate pace pulse identification and automatic analysis function.
03. Four working modes: Manual / Auto / Physical Examination / Storage
04. 80mm, 3 channel format recording
05. Freeze function: can replay 12 seconds cardiograph front and back
06. Fast ECG test under the [Physical Examination], saving power and paper
07. Store and replay cardiograph without printing parameters and diagnosis under the Storage Mode.
08. 3.5” 320×240 graphic 3.5 inch color screen
19. Adapt to 110-230V, 50/60Hz AC power supply. Built in rechargeable Li-ion battery.
10.12 lead waveforms view with 250 patient information storage (Extendable)
11.Built-in USB, RS232 interface, EXGNET software optional
12.USB interface for net transmission, USB flash disk and USB printer.
Specification
|
Lead
|
Standard 12 leads
|
|
Lead acquisition
|
12bit/1000Hz(synchronously 12 leads)
|
|
Work mode
|
MAN, AUTO, ANALYSIS Modes
|
|
Filter
|
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) |
|
CMMR
|
≥100dB (with AC FILTER)
|
|
Input circuit
|
Floating; Protection circuit against
Defibrillator effect |
|
Input Impedance
|
≥50MΩ
|
|
Input circuit current
|
≤0.05μA
|
|
Patient current leakage
|
＜10μA
|
|
Calibrating voltage
|
1mV±2％
|
|
Voltage tolerance
|
≥±500mV
|
|
Time constant
|
≥3.2s
|
|
Frequency response
|
0.05～160Hz(-3db)
|
|
Noise level
|
＜15μVp-p
|
|
Inter-channel Interference
|
≤0.5mm
|
|
Sensitivity
|
5，10，20, 40, Auto (mm/mV)
|
|
Recording mode
|
Default Man. Mode is 3 ch format
Default Auto. Mode is 3 ch+ format |
|
Paper speed
|
6.25、12.5、25、50mm/s（±3％）
|
|
Paper
|
80mm *20m Roll paper
|
|
Communication
|
RS232/ USB port
|
|
Power Supply
|
AC 110-230V(±10%),50/60Hz （ ±1Hz),60VA
DC Built-in rechargeable battery,12V(2000mmAh) |
|
Dimension/Weight
|
300mm×230mm×72mm/2.8Kg
|
