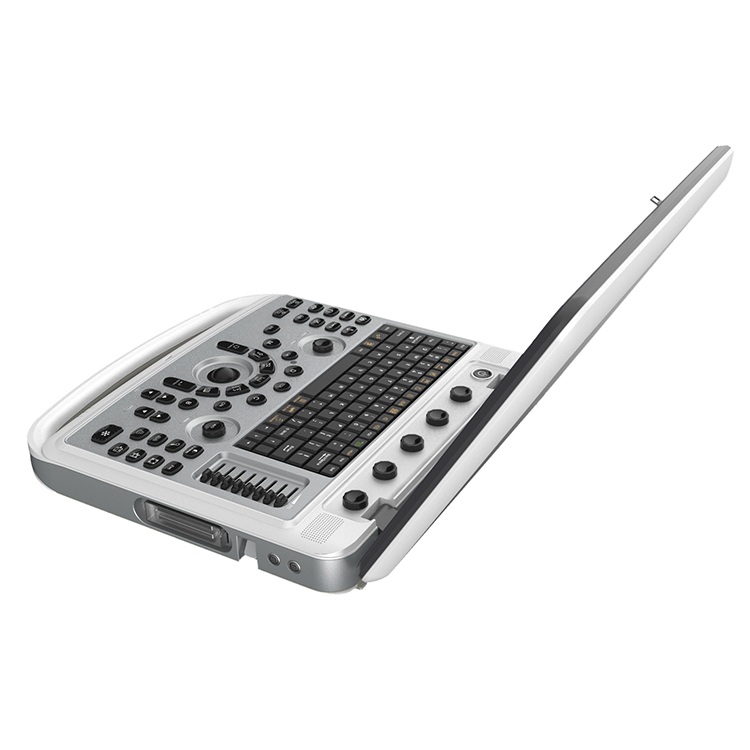

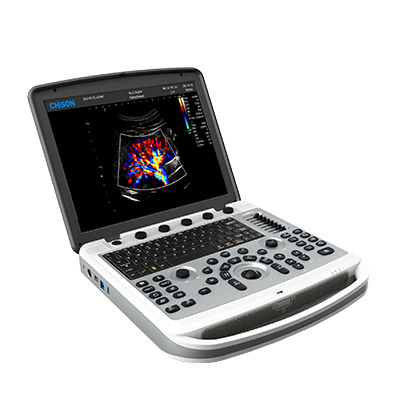

Chison sonobook 6 4D/5D Smart Ultrasound Automatic PW trace and measurement for General OB&GYN Cardiac

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

Chison

Model Number:

Sonobook 6

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Acrylic, Metal, Plastic

Shelf Life:

1years

Quality Certification:

ce iso

Instrument classification:

Class II

Safety standard:

GB/T18830-2009

Product name:

Chison SonoBook 6 smart Ultrasound machine

Type:

15 Inch LED Screen

Net weight of main unit:

5.5Kg

Dimension of main unit:

366mm*355mm*72mm

Battery:

Built-in Li-ion Battery

Main system power input:

19V 7.8A

Display:

High resolution color LED

DICOM Connectivity:

DICOM 3.0

Display mode:

B, 2B, 4B, B/M, B/BC, CFM, PW

Adapter Power supply voltage:

:AC100-240V 50/60Hz

Product Description

Chison sonobook 6 4D/5D Smart Ultrasound Automatic PW trace and measurement for General OB&GYN Cardiac

Specification

Scanning Model	15 inch LED Monitor chison trolley ultrasound machine ultrasound 4d physiotherapy ultrasound
Probe connector	2
Monitor size	15 inch
Image adjustment	up/down left/right white/black
Optional probe	3.5MHz convex probe5.0MHz micro convex probe,6.5MHz transvaginal probe,7.5MHz liner probe
Measure	Distance,circumference,area,volume,heart rate,Gestational age,fetal weight,Expected date of childbirth
Package size	480x460x430(cm)
Package weight	12.5KG
Focal distance	5 sets
Application	Abdomen, Obstetrics, Gynecology, Pediatrics, Artery, Superifical organ, Orthopedic, Musculoskeletal, Urology, Vessel, Andrology,Small parts, Cardiology, etc
Standard Warranty	• 2 years warranty for main unit from ex-factory date• 1 year warranty for transducers and battery from ex-factory date

Standard Configuration

. 12.1-inch LED monitor

. One transducer connector

. Control Panel

. Handle

. Indicators: Power/Battery/Standby/HDD status

. I/O Interfaces

. 2 USB ports

. 1 VGA OUT port

. 1 Video OUT

. 1 S-Video OUT

. Measurement & Calculation software packages

Transducers

•C3-V 3.0 MHz Convex probe

•L7-V 4.0 MHz-15.0 MHz Linear probe (40mm)

•L12-V 7.0 MHz-18.0 MHz Linear probe (40mm)

.L8M5-V 5.0 MHz-14.0 MHz Linear probe (50mm)

•P2-V 2.5 MHz Phased array probe (Adult)

•E6-V 6.0 MHz Trans-vaginal probe

•E7W-V 7.5 MHz Trans-vaginal probe

•R7-V 7.5 MHz transrectal probe

• MC6-V 6.0 MHz Micro-Convex probe

•MC3-V 3.0 MHz Micro-convex probe

Optional

• SONODocking

• Trolley

• Carrying Case

• Biopsy kit for C3-V

• Biopsy kit for MC3-V

• Biopsy kit for L7-V,L12-V

• Biopsy kit for MC6-V

• Biopsy kit for E6-V

• Biopsy kit for E7W-V

• Biopsy kit for R7-V

• SONY X898MD B&W Video Printer

Application and Features

Applications:

Diagnostic confidence and wide clinical applications

. Full digital technology. IP (image process) for fast image optimization. 8-TGC assuring accurate image control. A broad range of transducers for obstetrics, gynecology, abdomen, urology, small parts, orthopedics and pediatrics applications

1.Routine scanning

Efficient workflow can cope with advanced technologies in different scanning environments: Q-beam (multiwave blood flow high frame frequency), Q-low (high definition blood flow imaging). Q-image (Image Optimization Technology), FHI (tissue Harmonic Imaging),X-contrast (contrast Adaptive)，Excellent image quality Probe: along the array, in the linear face

2.Anaesthesia

.Easy recognition of nerve, blood vessels, intramuscular tissue puncture enhancement techniques to make needle body development.easier for two-dimensional image deflection.Local amplification of micro structure.Full screen image display mode

3.First aid

. Standby power saving mode.The battery lasts up to 2 hours and the battery is easy to disassemble. Durable external bright for different bad rings, A probe: phased library, linear array, convex array.Default value dedicated to first aid scan

4.Intensive care

. Light and small design, easy to carry fast and reliable performance.Working method for ICU .Special trolley and three seats (optional)

.Fast response.The battery lasts up to 2 hours

5.Cardiovascular system

. Fast response speed.Professional cardiovascular function and testing: automatic measurement of internal injection semi-automatic Thompson measurement,PISA, etc.

.User-defined measurement. Probe for cardiac professional scanning: phased library probe

Fetures:

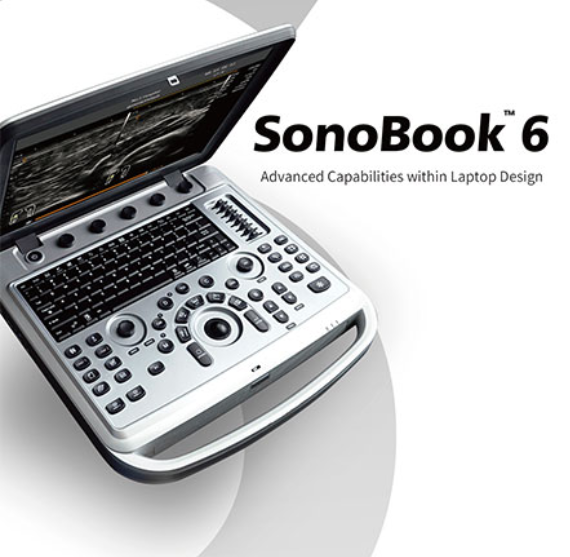

Featured with compact laptop based design for easy mobility, provide solutions when fast reaction is needed.Combined with productive features, crisp imaging performance and intuitive workflow, SonoBook 6 could support excellent patient care, and offer economic clinical value.

1. Main unit with 15" high resolution LED monitor，120° rotatable， Truly portable design<12 Ibs.2. 32G harddisk ; 3 built-in USB ports

3.Longer battery life up to 2 hours active mode, fast battery swap

4. Triple probe connector and precision cart(Option)5. SonoDocking: DVI-I, Foot-Switch, Video-Out, remote, S-Video, for fast data transfer

6. B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant Triplex, Duplex, Trapezoidal, Chroma B&M&PW7. Automatic PW trace and measurement

8. Super Image module: FHI, Multiple Compound Imaging, SRA (Speckle Reduction Algorithm),X-contrast,Q-beam,Q-flow

9. Auto IMT

10.. Q-Image (intelligent image optimization)

11. Measurement & calculation software packages: General, OB&GYN, Cardiac

1.Shallow high resolution. Sensitive low Speed

.Blood flow Imaging

.High Speed Blood flow Detection

2. more intelligent.Automatic Image Optimization in B. C. D Mode.Automatic measurement: intima media, transparent layer of neck, follicles automatically.Measurement and automatic envelope of spectrum.User-defined workflow3. more power-saving

. SSD hard disk has lower standby mode and more energy saving.Design for reducing heat and noise4.Quick boot. Shut down 2s.Quick storage callback.Real-time switching of different modes and measurements5.Wider.Advanced probe manufacturing technology

.Ultra-wide frequency conversion probe.Large capacity storage

6.10 times transmission speedThe new generation PA-E interface can realize the extreme speed transmission of 5G bps, which is 10 times higher than thetraditional USB data interface. Wake up in 1 second, store movie in 1 second, callback in 1 second, switch between different modes and test items, assist healer and life race.

7.Q-beam

Compared with the traditional double wave shaping device, the four beam former improves the transmission efficiency of 100% 6 signal, thus improves the frame rate, greatly improves the scanning speed, and makes the image quality similar or better.

Tissue harmonic imaging (FH)According to the patient's size, FHI gives a better processing scheme for signal reception and transmission.Combined with the traditional tissue xy wave imaging and fundamental imaging, the solution of resolution and penetration is given.It can significantly enhance the confidence of clinical staff in the scanning of patients with difficulties.

High definition blood flow imaging (Q-flow)According to the different tissue structure, the automatic blood flow survey well adapts to achieve better blood flow display:Enhance the display of low speed blood flow and improve color sensitivity

Automatic Image Optimization (AIO)The system can automatically and conveniently calculate and optimize images, including two-dimensional images and spectrum images,facilitate doctors to quickly obtain high-quality images and improve diagnostic efficiency.

Contrast adaptation (X-contrast)

Based on different tissue densities, one health optimizes the overall contrastBased on the organization type, three options, enhancement, routine and suppression, are given to optimize the contrastresolution.

Packing & Delivery

Chison sonobook 6 4D/5D Smart Ultrasound fight against Covid-19 Automatic PW trace and measurement for General OB&GYN CardiacPackaging Details:CartonPort:SHENZHEN

Standard export carton package:525mm*420mm*505mmGW: 16KG
