Chison sonobook 6V clinical diagnosis 4D/5D High Resolution Led Monitor Chison Portable Ultrasound Machine for Vet

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

Chison

Model Number:

Sonobook 6v

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Acrylic, Metal, Plastic

Shelf Life:

1years

Quality Certification:

ce iso

Instrument classification:

Class II

Safety standard:

GB/T18830-2009

Product name:

Chison SonoBook 6vet Ultrasound machine

Type:

15 Inch LED Screen

Net weight of main unit:

5.5Kg

Dimension of main unit:

366mm*355mm*72mm

Battery:

Built-in Li-ion Battery

Main system power input:

19V 7.8A

Display:

High resolution color LED

DICOM Connectivity:

DICOM 3.0

Display mode:

B, 2B, 4B, B/M, B/BC, CFM, PW

Adapter Power supply voltage:

:AC100-240V 50/60Hz

Product Description

Chison sonobook 6Vet clinical diagnosis 4D/5D High Resolution Led Monitor Chison Portable Ultrasound Machine specially for Veterinary

Specification

Dimensions and Weight
Dimensions ofmainunit(approx.)	366mm355mm72mm
Net weight of main unit (approx.)	5.5kg (with battery, without transducer, AC cord, AC adapter.)
Electrical Power
Adapter Power supply voltage	AC100-240V 50/60Hz
Main system power inputPackage size	19V 7.8A
Battery type: SonoBAT	92.88Wh maximum working time is 2h (depend on condition)

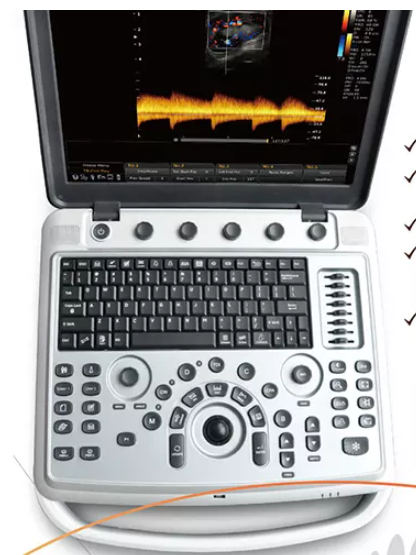

User interface
Operation Panel
Control panel
Alphanumeric keyboard
8 STCSlides
Interactive backlit keys
High resolution color LED
Diagonal dimension	15 inch
Resolution	1024X768
Brightness adjustment
Angle adjustable	0-120o
Integrated speaker	Volume adjustable

Standard Configuration

. 12.1-inch LED monitor

. One transducer connector

. Control Panel

. Handle

. Indicators: Power/Battery/Standby/HDD status

. I/O Interfaces

. 2 USB ports

. 1 VGA OUT port

. 1 Video OUT

. 1 S-Video OUT

. Measurement & Calculation software packages

Optional

. Second transducer connector

. DICOM 3.0: Image storage and printing

. Footswitch

. Mobile trolley: UMT-110

. Carrying Case

. Keyboard dust-proof cover

. Needle-guided brackets

Application and Features

Applications:

Diagnostic confidence and wide clinical applications

. Full digital technology. IP (image process) for fast image optimization. 8-TGC assuring accurate image control. A broad range of transducers for obstetrics, gynecology, abdomen, urology, small parts, orthopedics and pediatrics applications

Fetures:

1.Featured with compact laptop based design for easy mobility, providing the best solutions for various challenging VET environment.

2.Combined with dedicated VET transducers, professional VET software, specialized VET accessories and quick reaction, SonoBook6 VET is well-suited for both small animal and large animal.

3.Improve efficiency by optimizing the workflow. Fast boot-up within 20s. User-defined keys to define personalized operations. One key images or cines saved to local disk or USB

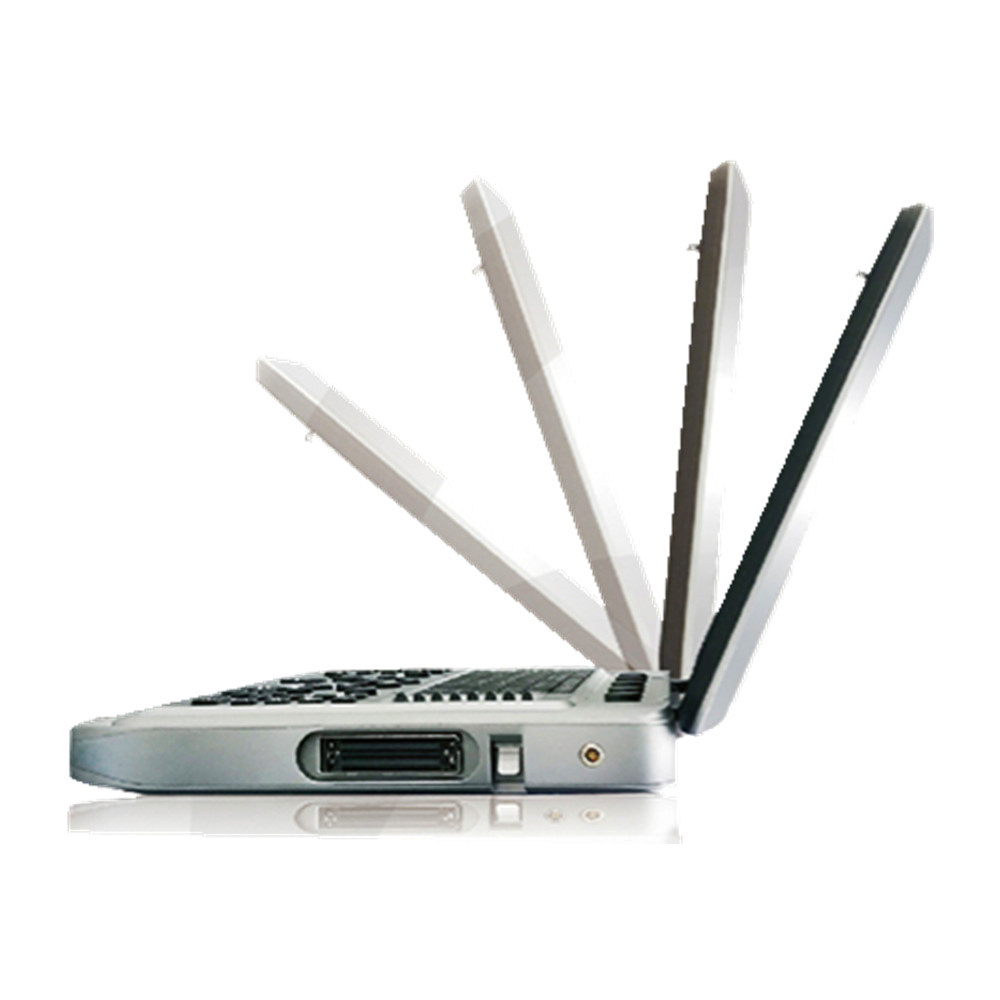

15 inch HD LED monitor with 120 rotatable.

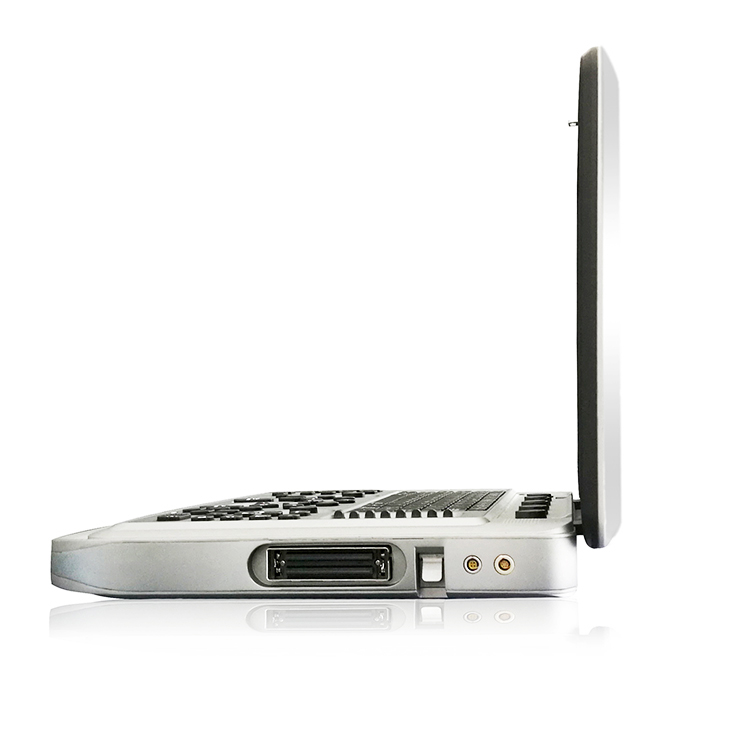

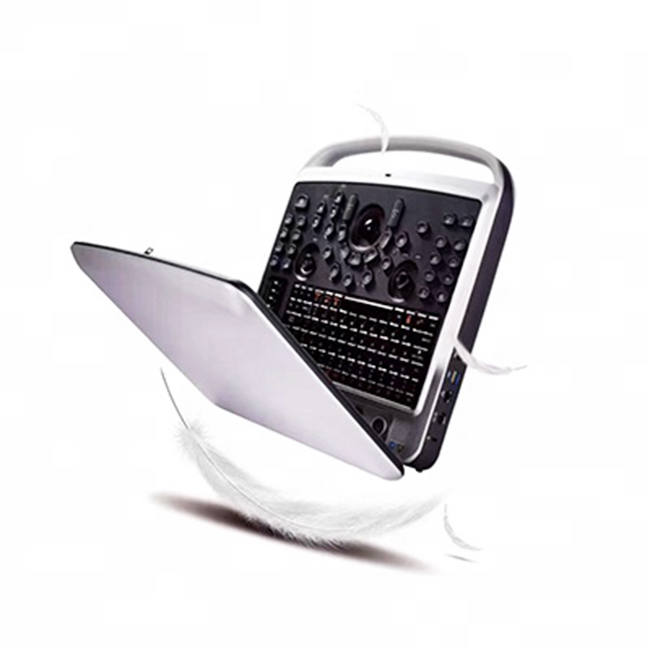

Compat and robust laptop design with 5.5kg for challenging VET environment and easy mobility,

2hrs battery life in active mode for outdoor VET scanningDedicated trolley with small footprint anti-theft lock, accessory basket, printer socket, pneumatic height adjustment sonotripleconnector, ergonomic hand rest.

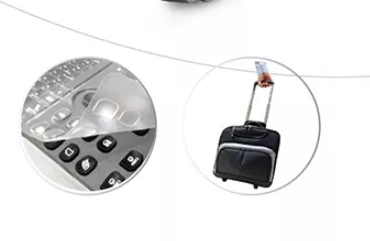

Complele accessones for VET application PC pinters and video pinters, dedicated carrying case, waterproof keyboardcover.

Designed for the Veterinarian

A.Dedicated VET transducers

1.Smaller footprint , easy to target whole body2. Ergonomic design, release from scanning fatigue

3.Higher frequency. obtain near field image4.Lower weight, easy to carry, easy to scan5.High frequency linear probe with good resolution and penetration Frequency range.

6.7.0MHz-18.0MHz Excellent choice for superficial scanning: tendon, testicle,intestine7.Dedicated linear-rectal probe for large animal's reproduction

8.Black color for durable usage, easy to clean9.Ultra-long cable to keep the system for the safe distance

B.Professional VET software—specialized VET preset

C.Dedicated VET calculation package, body mark and annotation

Excellent image qualityA.FHI for deep penetration of large animal.1. FHI is an innovative harmonic imaging technology that uses multiple transmission and receiving methods based on the patient's size andweight

2.This llows the SonoBook 6VET to maintain image resolution when imaging larger patents.3.Traditionai Tissue Hamonics and Phased Harmonics compromise image quality and resolution when penetration is increased,

4.Chison's FHI technology greatly improves diagnostic abilities and clinical confidence in larger, difiult-to-image patients

B.Q-beam for rapid breath of small animal.1. Compared to the traditiona dual-beam, SonoBook6 VET uses quad-beam to receive signal, thus doubles the volume of signal received as well as the frame rate.2.Higher frame rate ensures better diagnostic confidence and fficiency. Especially for rapid movement of small animais.

Packing & Delivery

Chison sonobook 6Vet clinical diagnosis 4D/5D High Resolution Led Monitor Chison Portable Ultrasound Machine specially for Veterinary Packaging Details:CartonPort:SHENZHEN

Standard export carton package:525mm*420mm*505mmGW: 16KG
