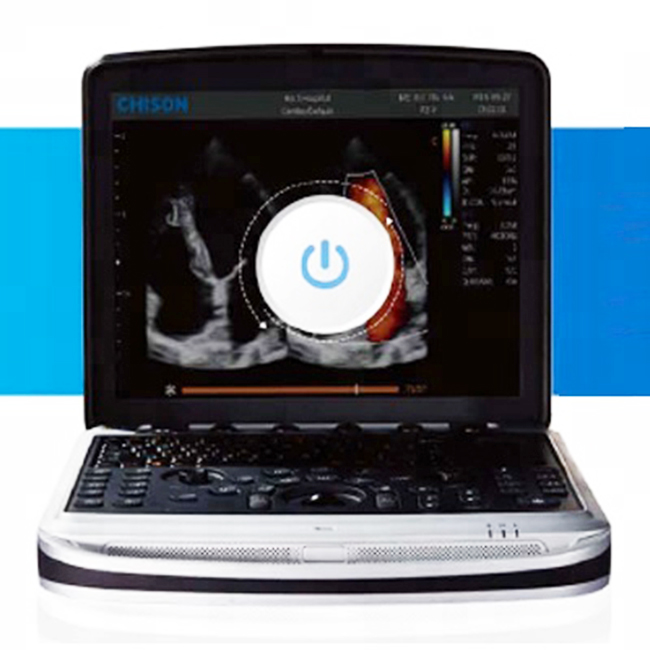

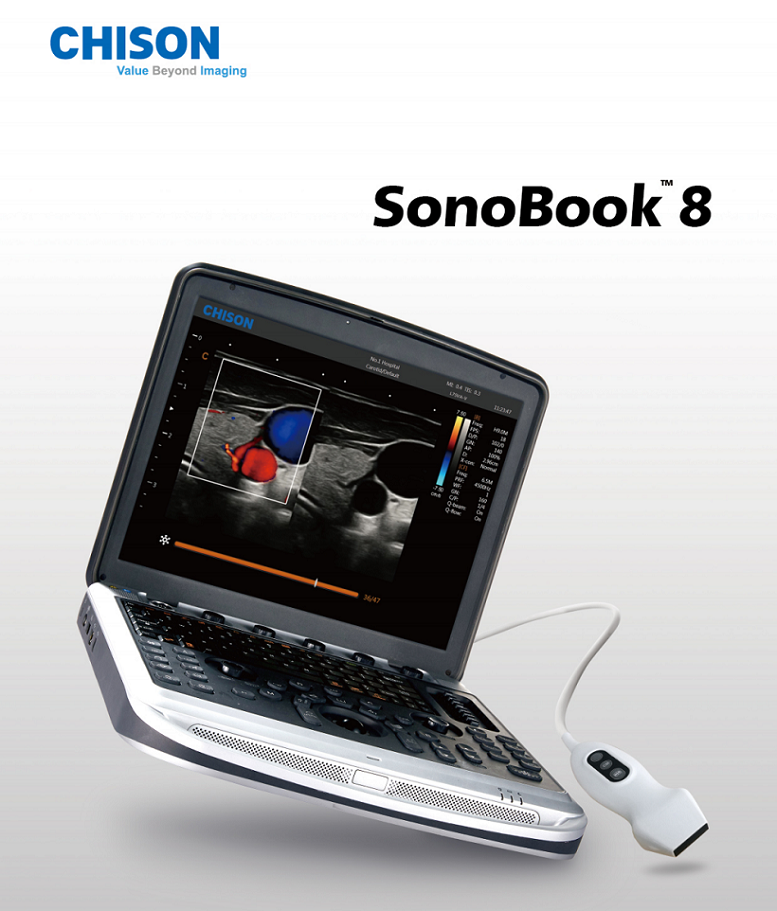

Chison sonobook 8 Smart Laptop with Premium Performance medical Color ultrasound machine price for human

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

Chison

Model Number:

Sonobook 8

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Acrylic, Metal, Plastic

Shelf Life:

1years

Quality Certification:

ce iso

Instrument classification:

Class II

Safety standard:

GB/T18830-2009

Product name:

Chison SonoBook 8 Ultrasound machine

Type:

15 Inch LED Screen

Weight:

7.5Kg

Battery:

Removable battery, 120 min in active mode

Ports:

USB, LAN, VGA, DVI, VIDEO, REMOTE

Angle adjustable:

0-120°

Display:

High resolution color LED

transducers:

Convex,Linear, Micor-convex, Transvaginal,Phased array 4D etc

Frequency:

50/60Hz

Power supply:

110/220V

Product Description

Specification

item	value
Model	SonoBook 9
Diagonal dimension	15 inch
Resolution	1024X768
Angle adjustable	0-120
Main system power input	19V 7.8A
Adapter Power supply voltage	AC100-240V 50/60H
Dimensions of main unit (approx.)	366mm355mm72mm
Net weight of main unit (approx)	5.5kg (with battery, without transducer, AC cord, AC adapter.)
4D volume transducer	VC4-V
USB 2.0 port	1
Versatile probes covering	1.5Mhz-18Mhz
Advanced technologies	Q-beam, Q-flow, Q-image, FHI, X-contrast
USB portsWifi compatible	Yes
Battery life	2 hours in active mode, one week in standby mode
Probe	192 elements high density probe
Large storage size	10 thousand images and cines
Ports	USB 3.0, DICOM, Sonodocking etc.
Warrantly	2 years

Standard Configuration

1 active probe port

Pencil transducer port

ECG port

USB 3.0 port: 2

USB 2.0 port: 1

Ethernet port

Docking port

B mode

B/M mode

M mode

Dual mode

Quad mode

Pulse Wave Doppler

Color Doppler Flow Imaging

Power Doppler Flow Imaging

Directional Power Doppler Flow Imaging

B/BC mode

Trapezoidal mode

Chroma

Triplex mode

Quadplex

Biopsy

General measurement package

OB measurement package

GYN measurement package

URO measurement package

Cardiac measurement package

Vascular measurement package

Small parts measurement package

Pediatric measurement package

TCD measurement package

X-Contrast

FHI

Q-Image

Q-flow

Q-beam

SRA

Compound

AIO (Automatic Image Optimization)

Standby

Screen Saver

One key for full screen view

Integrated battery

Auto ambience adjustment

SSD hard drive (128GB)

Multi-language screen display

EasyView: image archive system

Patient information management system

Application and Features

Application:

Cardiovascular

• Instant response.• Innovative transducer technologies are used for extraordinary cardiac performance.• Comprehensive cardiac measurement packages: Stress Echo, Auto IMT, Semi-automatic Simpson measurement, PISA, and etc.• User-definable cardiac measurement workflow.• Comprehensive range of probes for cardiac scanning: TEE, Pencil & Phased array.Radiology·Versatile probes covering 1.5 MHz-18 MHz.·Efficient workflow for different clinical applications.·Real-time curved panoramic imaging.· Advanced technologies: Q-beam,Q-flow,Q-image, FHI, X-contrast.·Extraordinary performance for easy diagnosis.· Probes: Convex, Linear, Transvaginal, Transrectal, Micro-Convex,etc.

Women’s Healthcare• Auto-trace measurement• for breast lesions and follicles.• Quantitative elastography analysis for breast.• IVF procedures: Multiple follicles report, dedicated EPU kit.• Auto NT measurement, 4D, virtual HD,• depth view for OB, etc.• Multi-slice imaging for detailed diagnosis of fetal defections.• Probes: Convex, 4D, Linear, Wide angle transvaginal (up to 210°), High density probe.

Anaesthesia·Superior anesthesia performance.· Super Needle enhance needle without degrading the image.· 2D steer.·Multi-zoom function for tiny structures,full screen to enlarge the image area.· Probes: 192 elements linear,18MHz high frequency probe,button-probe.

Critical care· Portable design < 12 lbs. Fast and reliable performance.· Dedicated process for ICU purpose.· Triple probe connectors and precision cart(option).· Instant response.·Excellent battery life,up to2hours in active mode,up to1 week in standby mode.·Probes: Phased array, Convex,Linear,Micro-convex,Button-probe.

Emergency·Fast boot-up.·Longer battery life up to 2 hours active mode,fast battery swap.·Auto-ambient adjustment for indoor and outdoor environment· Durable &robust design for challenging environment.· Probes: Phased array, Linear, TV, Button-probe.· Built-in FAST preset.Wifi-compatible.

Features:

Button-probe

.Remote control of the system through probe buttons,free your left hand for other important work.

.Program the P button,for simple,fast and precise use.

· Provide immediate image refinement with one click

. Easy control&easy hold.

Small outsideUltra· Ultra-Light < 12 lbs (with battery)· UItra-Slim· Ultra-compact·Ultra-deep penetration > 30cm· Ultra-superficial observation < 2mm· UItra-slow velocity detection < 2cm/s· Ultra-high velocity detection > 40m/s(probe-dependent)

Faster·Boot up around 1min·Shut down < 12s·Still image and cine can be saved in 1s· Instant switch between different modes & measurements

Wider· Versatile solutions: Cardiovascular, Radiology, Internal· Medicine.Small Parts,General lmaging,Vascular, Intensive care, Emergency, MSK, ICU· Supports wide ranges of probes· Covering 1.5 MHz- 18 MHz frequency range· 192 elements high density probe·Innovative probe (available)·Large Storage Size(10 thousands of images and cines)

Huge insideMore Connectable· Intelligent patients' data management· SonoDocking: DVl-I, Foot-Switch, Video-Out, remote, S-Video· USB3.0· Wifi-Compatible·DICOM: Structure report, worklist,storage, print

Smarter·AlO (Automatic Image Optimization for B mode & D mode)· Auto Measurement Auto IMTAuto NT,Auto -trace for PW,Auto-trace for follicles and breast lesions· User-defined workflow· Auto-ambient adjustment tailor to indoor & outdoor uses

Greener· SSD for lower power consumption Standby mode to save energy· Auto-ambient adjustment to save battery life Low heat and noise design· Up to 1 week battery lie in standby mode· Up to 2 hours of continuous use in active mode

Auto Follicle, B Mode

Cardiac, B BC Mode

MSK,B Mode

Stress Echo

Thyroid, Elastography

Packing & Delivery

Chison sonobook 8 Smart Laptop with Premium Performance medical Color ultrasound machine price for humanwhich is chison ultrasound machine Color Doppler Ultrasound Echo Machine 3d scan medical ultrasound instruments and portable ultrasound the ultrasound machine health instruments for men and veterinary ultrasoundPackaging Details:CartonPort:SHENZHEN

Company Profile

FAQ

1. who are we?We are based in Sichuan, China, start from 2019,sell to Western Europe(20.00%),Eastern Europe(19.00%),Africa(12.00%),South Asia(8.00%),Southern Europe(8.00%),Northern Europe(6.00%),Domestic Market(5.00%),South America(5.00%),Mid East(5.00%),Southeast Asia(4.00%),North America(3.00%),Eastern Asia(3.00%),Central America(2.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Ultrasound Machine,Operating Technology and Operating equipment,OB/GYN and infant and gynecology,Diagnostics equipment,Hospital furniture4. why should you buy from us not from other suppliers?Focus on the field of medical devices and Health products ;OEM/ODM supportedThe products with excellent quality and perfect service enter 20 countries and regions ;Service rely on strong technical support and long-term development ;5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF；Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
