Mindray DC-30 Siterite Smart Diagnostic Trolley Ultrasound Equipment With Exceptional Capabilities

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

Mindray

Model Number:

DC-30

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Acrylic, Metal

Shelf Life:

2 years

Quality Certification:

Instrument classification:

Class II

Safety standard:

GB/T18830-2009

Product name:

Mindray DC-30 Doppler Ultrasound System

Imaging modes:

PSH, 3D/4D Imaging

Certificate:

CE ISO

Probe type:

Convex, Linear, Phased array, 4D Volume, etc

Battey:

Built-in battery for live scanning

Monitor:

15 Inch LED Monitor

Hard Disc:

CD/DVD-RW and USB ports

Application:

ABD, OB/GYN, MSK, Cardiology, Anesthesiology, Urology, etc.

Connectors:

Three active transducer connectors

Product Description

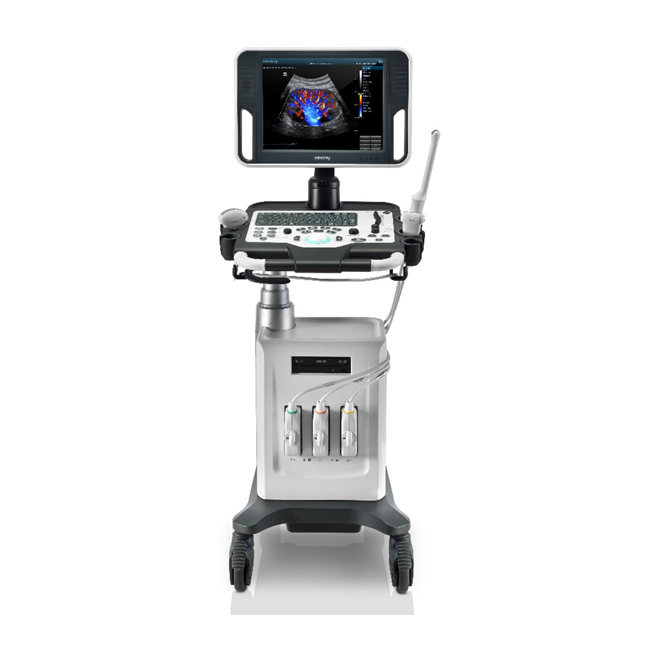

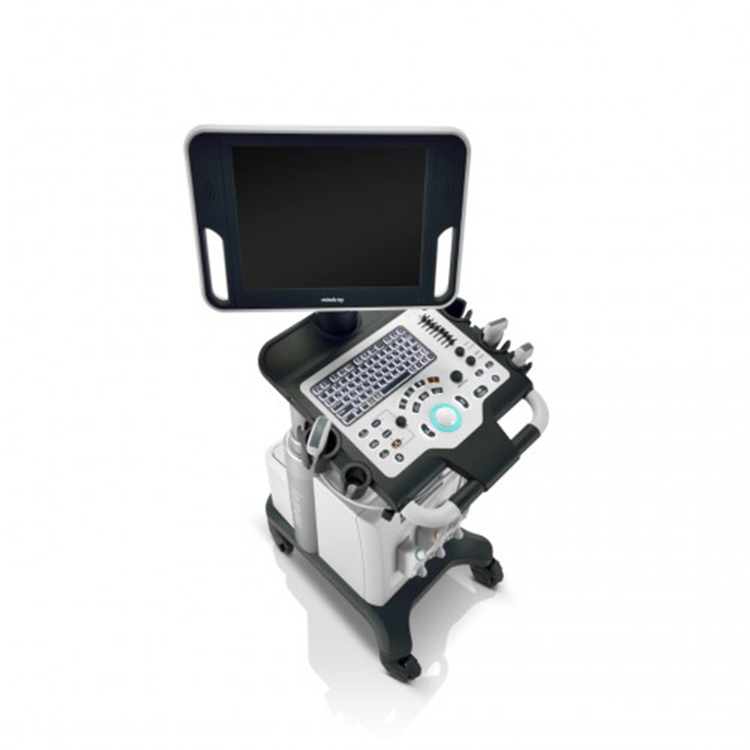

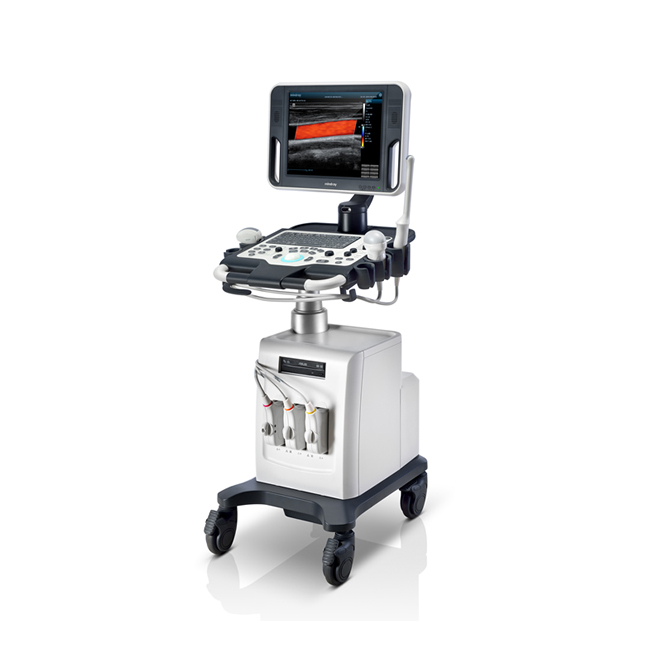

Mindray DC-30 Siterite Smart Diagnostic Trolley Ultrasound Equipment With Exceptional Capabilities

Image Gallery

Specification

Standard Configuration	DC-30 Main Unit15'' LED monitor with easy handleHeight Adjustable control panelThree active transducer connectors Removable transducer holder and gel warmerBuilt-in battery for live scanningCD/DVD-RW and USB ports

Product Application

Product Features

The DC-30, a new generation of Mindray's whole-body application-based economic ultrasound, inherits Mindray's imaging technology and clinical functions. Its excellent image performance, comprehensive features and intelligent design can meet a wide range of clinical diagnostic needs and enhance diagnostic confidence.

Performance

PSH™ (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise

iBeam™

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improvedvisualization

iClear™

Gain improved image quality based on auto structure detection. * Sharper & Continuous Edges * Smooth Uniform Tissues * Cleaner ‘no echo areas’

Multiple Beam FormationMaximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

3D/4D ImagingIncluding 3D/4D Flip & Sync features providing fast and easy image volume view from any direction.

Workflow

iScanHelperDedicated inbuilt tutorial software * Anatomical diagram illustrations including schematic and ultrasound picture * Standard ultrasonogram comparison with real-time scanning * Scanning reference picture demonstrating appropriate patient position and probe placement * Tips on scanning skills and diagnostic information

Raw DataEnables optimum flexibility for post rocessing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning

iZoom™Gain instant full screen view on the click of a single keyiStorageDirectly transfer images and reports to PC via network cableiStation™Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively
