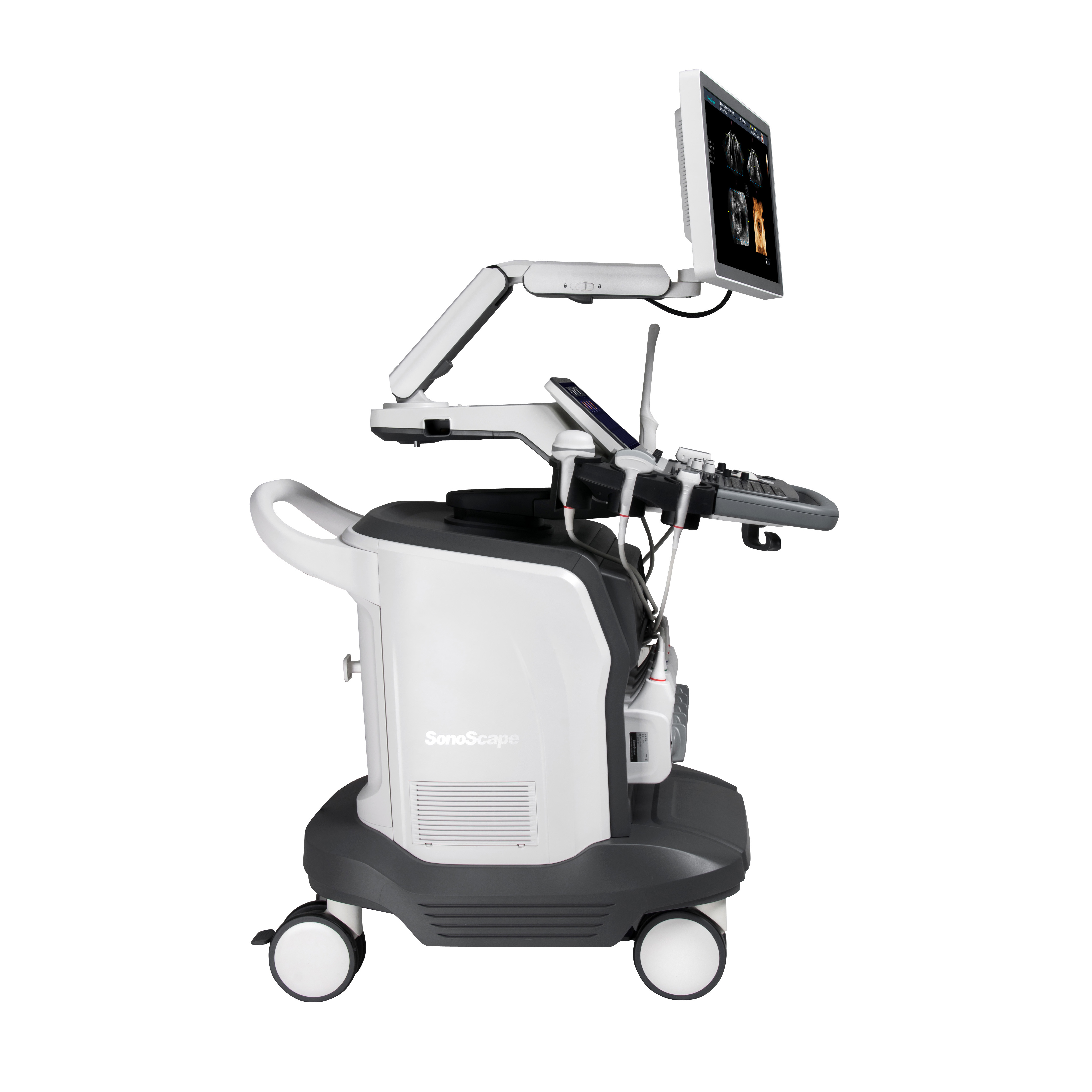

SonoScape S50 Elite Factory Price Professional Trolley Echography Household Ultrasound Equipment

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

SonoScape

Model Number:

S50 Elite

Power Source:

Electric

Warranty:

1 Year

After-sale Service:

Online technical support

Material:

Metal, Plastic

Shelf Life:

1years

Quality Certification:

Instrument classification:

Class II

Safety standard:

None

Product name:

SonoScape S50 Elite Full Digital CDFI Ultrasound System

Imaging modes:

B( 2B & 4B )/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW

Certificate:

CE ISO

Probe type:

Convex, Linear, Phased array, 4D Volume, etc

Monitor:

21.5" High Resolution Medical Monitor

Touch Screen:

13.3" High Resolution Touch Screen

Application:

ABD, OB/GYN, MSK, Cardiology, Anesthesiology, Urology, etc.

Connectors:

Five Probe Connectors (Four Active + One Parking)

Output interface:

HDMI Output and USB 3.0 Ports

Product Description

SonoScape S50 Elite Factory Price Professional Trolley Echography Household Ultrasound Equipment

Standard Configuration	S50 Elite Main Unit
		21.5" High Resolution Medical Monitor
		13.3" High Resolution Touch Screen
		Height Adjustable and Rotatable Operation Panel
		Five Probe Connectors (Four Active + One Parking)
		One Pencil Probe Port
		External Gel Warmer (temperature adjustable)
		Built-in ECG Module (Including Hardware and Software)
		Built-in Wireless Adapter
		2TB Hard Disk Drive, HDMI Output and USB 3.0 Ports

Unique Technologies

Single Crystal Convex C1-6 / Sector S1-5

Single crystal transducers enable pure imaging, especially for difficult patients, by increasing the uniformity of crystal alignment and raising energy transmission efficiency. Single Crystal C1-6 for abdominal and OB patients and S1-5 for cardiology and transcranial applications.

Composite Crystal Linear Transducer

By reforming the conventional piezoelectric materials, composite crystal transducers achieves a better acoustic spectrum and lower acoustic impedance to serve well in vascular, breast, thyroid, MSK, etc. The combo of 12L-A, 12L-B, 9L-A covers an ultra-wide frequency bandwidth, leaving nearly no blind spot for all sorts of scanning.

Ultra-light Crafted Volume VC2-9

VC2-9 adopts a simple yet powerful design, which not only provides a remarkable enhancement in 3D/4D imaging quality but also reduces the weight of itself for a more comfortable grip by the meantime. Ultra-wide bandwidth, exquisite resolution and penetration at high volume rate make VC2-9 a one-probe -solution throughout nearly the entire pregnancy.

Considerate User Interaction

Sono-help

An inspiring tutorial displaying probe placement, anatomy illustration and standard ultrasound image examples. As a useful reference less experienced clinicians could rely on, Sono-help covers a variety of applications including liver, kidney, cardiac, breast, thyroid, obstetrics, vascular, etc.

Sono-synch

Real-time interface and camera sharing, enabled by Sono-synch, makes it possible to connect two ultrasound in a remote distance and perform remote medical consultation and tutorial.

Sono-drop

Sono-drop provides a fast and convenient ultrasound image transmission between P40 ELITE and the patients' smart devices. The bond between clinicians and patients are supposed to be strengthened through more frequent communication.

Sono-assistant

Sono-assistant guides clinicians through the entire exam and provides customizable scanning protocol helps streamline workflow while increasing standardization and reducing keystrokes and exam time.
