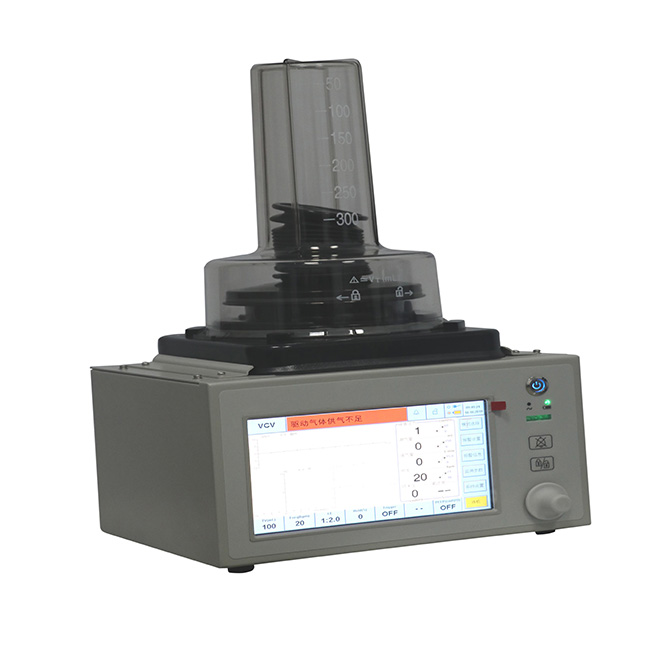

Veterinary Anesthesia Ventilator AMBC268

Quick Details

Compact and salve the space
Light and easy to move
With breathing mode PCV mode
With big animal bellow and small animal bellow
The gas source pipeline take the high precious gas source
HD TFT Touch screen
touch at key to Set parameter
Matching with different brand veterinary anesthesia machine

Packaging & Delivery

Specifications

Veterinary Anesthesia Ventilator AMBC268| Medsinglong

cc

Feature:
Specially user for animal,anesthesia ventilator,could widely apply in vet hospital,animal R&D
institute,university laboratory,animal clinic，animal zoo,etc,it can match any brand anesthesia machine to use
1,Compact and salve the space.
2,Light and easy to move,save animal hospital cost.
3,With breathing mode PCV mode, achieve the breathing automatically,
assure the animal more comfortable.
4,With big animal bellow and small animal bellow,specially for animal use
5,The gas source pipeline take the high precious gas source,no leakage forever.
6,HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to
operate.
8,Build in battery could continue two more hours in case of power failure
9,Matching with different brand veterinary anesthesia machine

Anesthesia Ventilator

Basic description
Parameter Description
Display 9 inch TFT, with touch screen.
Drive
gas
Gas type O2 or Air
Inlet pressure 280-600 kPa.
Max flow ≤ 120 L / min.
Operating Mode VCV,PCV,SPONT,Manual，Demo
Waveform Waveform:
Pressure,Flow-rate,Volume
Loop:PV loop, PF loop,FV loop
Safety Pressure System pressure does not exceed 6 KPa.
Battery Type Li-ion,work time more than 2 hours
Parameters setting range

Parameter description
Tidal volume Range: 20 – 1500ml; Increment: 1 mL;
Respiratory rate Range: 1 ~ 100 bpm;
Inspiratory time Range: 0.1 ~ 10.0 s
Respiratory ratio Range: 9.9:1 to 1:9.9
Percentage of inspiratory pause Range: 0 to 50%
PEEP Range: OFF, 3 ~ 20 cmH2O
Pressure Support Range: 0 ~ 60 cmH2O
Pressure Control Range: 5 ~ 60 cmH2O
Flow trigger Range: 0.5 ~ 20L/min
Pressure Trigger Range: -1 ~ -20 cmH2O
PSV Insp Termination Level 25%.
Monitored parameters
Parameter Description
Inspiratory tidal volume Range: 0 ~ 2500 mL
Expiratory tidal volume Range: 0 ~ 2500 mL
Minute ventilation Range: 0 ~ 60 L / min
Spontaneous minute ventilation Range: 0 ~ 60 L / min
Respiratory rate Range: 0 ~ 100 bpm
Spontaneous breathing frequency Range: 0 ~ 100 bpm
Respiratory ratio Range: 9.9:1 to 1:9.9
Peak airway pressure Range: 0 ~ 100 cmH2O
Mean airway pressure Range: 0 ~ 100 cmH2O
PEEP Range: 0 ~ 100 cmH2O
Inspiratory plateau pressure Range: 0 ~ 100 cmH2O
FiO2(optional) Range: 15 to 100%
Alarm settings

Alarm type Range
Tidal volume High 0 ~ 2000 mL, OFF
Low 0 ~ 1500 mL
Minute ventilation High 1 ~ 99 L
Low 0 ~ 98 L
Respiratory rate High 1 ~ 100bpm
Low 0 ~ 99 bpm
FiO2(optional) High 19 ~ 100%
Low 18 ~ 99%
Airway pressure High 6 ~ 99 cmH2O
Low 0 ~ 9 8 cmH2O
FiCO2 (optional) High 0.1 to 13.3%;
Low 0 to 13.2%
Continuous Positive Airway
Pressure
Airway pressure greater than (PEEP +15) cmH2O, 15 s
sustained when an alarm is triggered.
Negative pressure alarm Airway pressure is less than (-10) cmH 2 O.
Apnea alarm Setting time is 10 ~ 60 s, in increments of 1 s.
Gas deficiency alarm Gas pressure is less than 280 kPa.
AC power failure alarm The mains breaks down or the power cord disconnects
Low battery alarm Alarm battery time is 20 min.
Alarm battery is exhausted Alarm battery time is 10 min.
Silent Alarm ≤ 120 s
O2 sensor failure FIO2 <15% Vol
