Overview
Quick Details
China
ZONCARE
iMAC300
Electric
1 Year
Online technical support
Metal, Plastic
1 year
ce
Class II
None
3-channel
5.6 Inch
3*4, 3*4+1, 1*12 formats
32000Hz
24 bits
0.01-350Hz
12 leads
1.2kg
ZONCARE iMAC300 Manufacturer Medical CE Approval Digital 3 Channel ECG Machine with 5 inch LCD Screen
Specification
item | value |
Place of Origin | China |
Brand Name | ZONCARE |
Model Number | iMAC300 |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Channel | 3-channel |
Display | 5.6 Inch |
Manual/Auto printing | 3*4, 3*4+1, 1*12 formats |
Digital sampling rate: | 32000Hz |
AD Converter: | 24 bits |
Frequency response: | 0.01-350Hz |
simultaneous acquisition | 12 leads |
Weight | 1.2kg |
Product Application
An ECG machine is used to determine if a patient's heart rate is in the normal range. The ECG can also detect arrhythmias by looking at the shape of individual waves.
Product Features

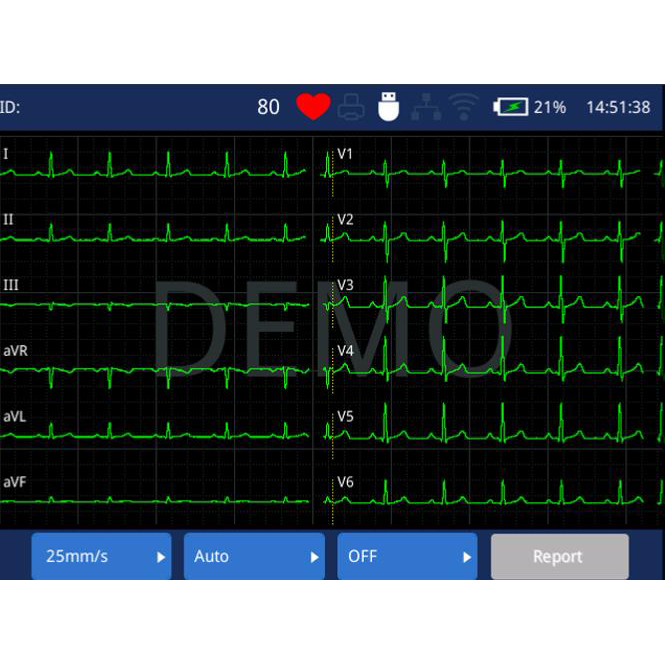

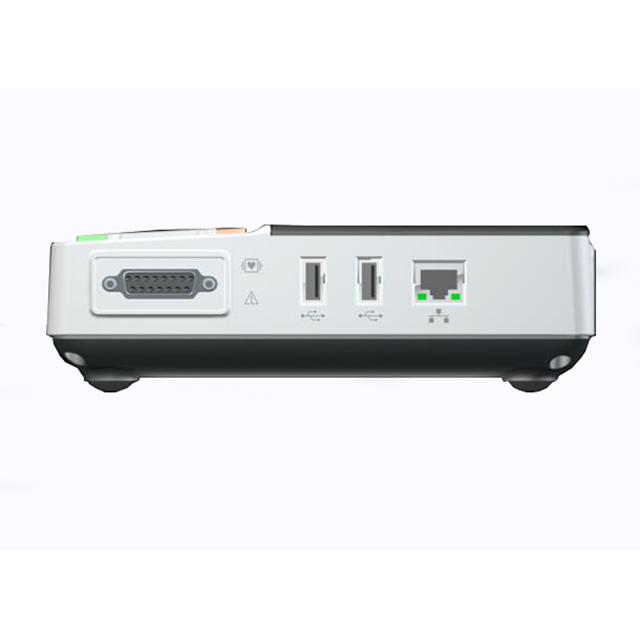

Performance:* 12-lead synchronous acquisition and display* Glasgow ECG analysis algorithm can accurately trace and diagnose the cardiac abnormal waveforms* Support pacemaker detection* Digital sampling rate: 32000Hz* 0.01-350Hz ultra-wide frequency response improves the detection of tiny waveform* Original ilter”adaptive fitering technology has greatly improved the ECG signal quality* Manual/Auto printing: 3×4, 3×4+1, 1×12 formatsFeatures:* 5-inch high resolution LCD screen* The lightest 3-ch ECG, only 1.2kg* Alphanumeric keyboard design* Optional touch screen for better operation experience* Support Z-fold and roll thermal recording paper* ECG data can be saved as HL7, XML, PDF, PNG, JPG, DICOM, GDT or ZQECG format* Support data transmission to PC via LAN port, USB port, SD card and WIFI* Support paperless records and storage of electronic cases, the machine stores more than 1500 cases
